Step1: Product

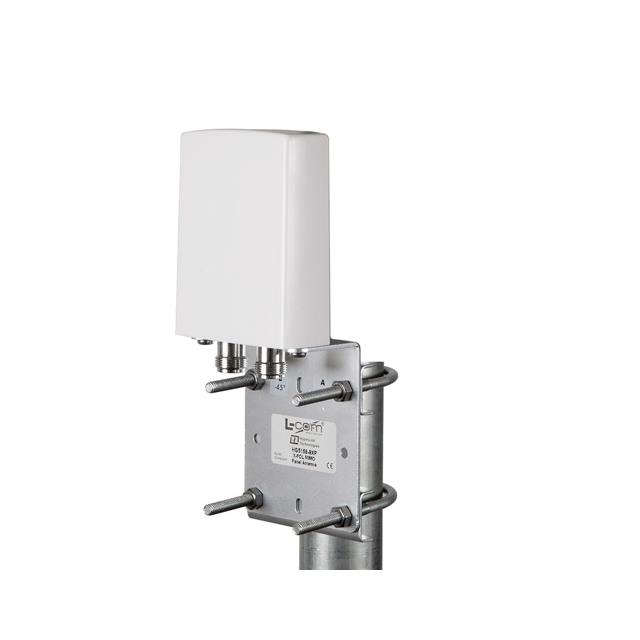

L-com HG5158-9XP
Image shown is a representation only
Manufacturer
Manufacturer No
HG5158-9XP
Packaging
Bag
Description
5150 MHZ TO 5935 MHZ FLAT PANEL
Detailed Description
RF ANTENNA 802.11a/h/p/n/ac/ax, Wi-Fi Panel N Type Female (2) Bracket Mount
DataSheet
Gain
7.5dBi, 9.2dBi, 7.7dBi
VSWR
1.8, 2.5, 4.8
Series
HG
Features
Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Packaging
Bag
Part Status
Active
Power - Max
50 W
Termination
N Type Female (2)
Antenna Type
Panel
Applications
802.11a/h/p/n/ac/ax, Wi-Fi
Height (Max)
3.940" (100.08mm)
Manufacturer
L-com
Mounting Type
Bracket Mount
Frequency Group
Wide Band
Frequency Range
4.4GHz ~ 4.9GHz, 4.9GHz ~ 6.1GHz, 6.1GHz ~ 6.4GHz
Number of Bands
3
Ingress Protection
IP67
RF Family/Standard
WiFi
Frequency (Center/Band)
4.65GHz, 5.5GHz, 6.25GHz
| Attribute | Value |
|---|---|
| Gain | 7.5dBi, 9.2dBi, 7.7dBi |
| VSWR | 1.8, 2.5, 4.8 |
| Series | HG |
| Features | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 50 W |
| Termination | N Type Female (2) |
| Antenna Type | Panel |
| Applications | 802.11a/h/p/n/ac/ax, Wi-Fi |
| Height (Max) | 3.940" (100.08mm) |
| Manufacturer | L-com |
| Mounting Type | Bracket Mount |
| Frequency Group | Wide Band |
| Frequency Range | 4.4GHz ~ 4.9GHz, 4.9GHz ~ 6.1GHz, 6.1GHz ~ 6.4GHz |
| Number of Bands | 3 |
| Ingress Protection | IP67 |
| RF Family/Standard | WiFi |
| Frequency (Center/Band) | 4.65GHz, 5.5GHz, 6.25GHz |
