Step1: Product

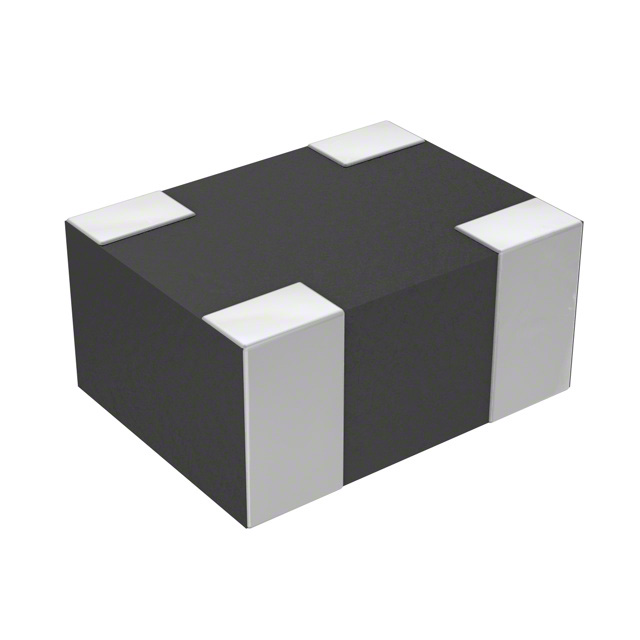

KYOCERA AVX CP0805B1907AWTR
Image shown is a representation only
Manufacturer
Manufacturer No
CP0805B1907AWTR
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR)
Description
RF DIR COUPLR 1.895-1.92GHZ 0805
Detailed Description
RF Directional Coupler PHP 1.895GHz ~ 1.92GHz 15 ± 1dB 3W 0805 (2012 Metric)
DataSheet
Frequency
1.895GHz ~ 1.92GHz
Isolation
-25dB
Packaging
Tape & Reel (TR)
Part Status
Active
Power - Max
3W
Return Loss
-24dB
Applications
PHP
Coupler Type
Standard
Manufacturer
KYOCERA AVX
Insertion Loss
0.3dB
Package / Case
0805 (2012 Metric)
Coupling Factor
15 ± 1dB
Supplier Device Package
0805
| Attribute | Value |
|---|---|
| Frequency | 1.895GHz ~ 1.92GHz |
| Isolation | -25dB |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Power - Max | 3W |
| Return Loss | -24dB |
| Applications | PHP |
| Coupler Type | Standard |
| Manufacturer | KYOCERA AVX |
| Insertion Loss | 0.3dB |
| Package / Case | 0805 (2012 Metric) |
| Coupling Factor | 15 ± 1dB |
| Supplier Device Package | 0805 |
