Step1: Product

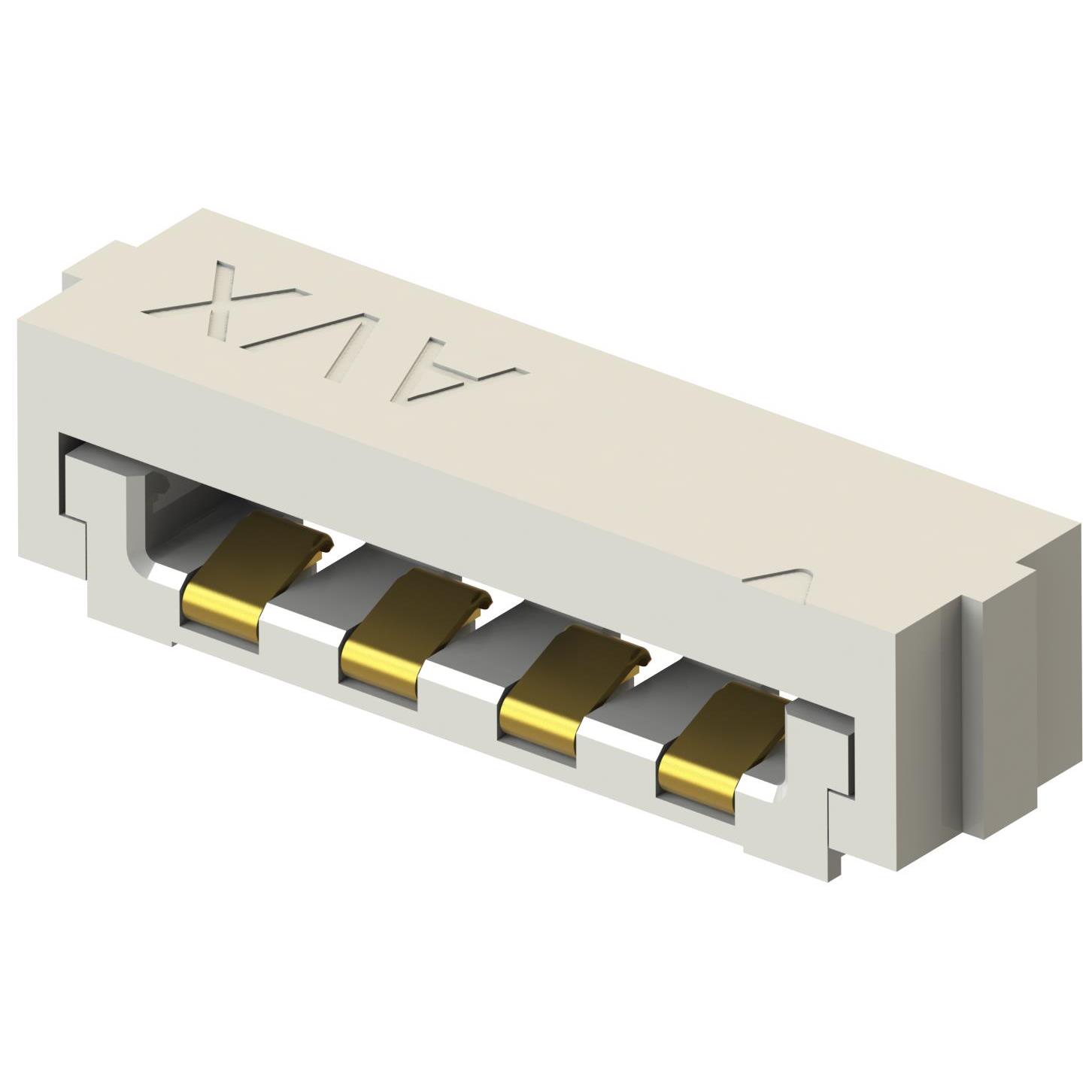

KYOCERA AVX 229159004101916
Image shown is a representation only
Manufacturer
Manufacturer No
229159004101916
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
4 POSITION LINEAR TOP LOAD SOCKE
Detailed Description
SSL Connector 4 Position Plug Board to Board 0.118" (3.00mm) Solder
Datasheet
Pitch
0.118" (3.00mm)
Style
Board to Board
Series
9159
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
KYOCERA AVX
Housing Color
White
Mating Cycles
10
Mounting Type
Surface Mount, Right Angle
Connector Type
Plug
Contact Finish
Gold
Voltage Rating
125V
Contact Material
Copper Alloy
Housing Material
Polyamide (PA), Nylon
Number of Positions
4
Current Rating (Amps)
5A per Contact
Operating Temperature
-40°C ~ 125°C
| Attribute | Value |
|---|---|
| Pitch | 0.118" (3.00mm) |
| Style | Board to Board |
| Series | 9159 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | KYOCERA AVX |
| Housing Color | White |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Plug |
| Contact Finish | Gold |
| Voltage Rating | 125V |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Number of Positions | 4 |
| Current Rating (Amps) | 5A per Contact |
| Operating Temperature | -40°C ~ 125°C |
