Step1: Product

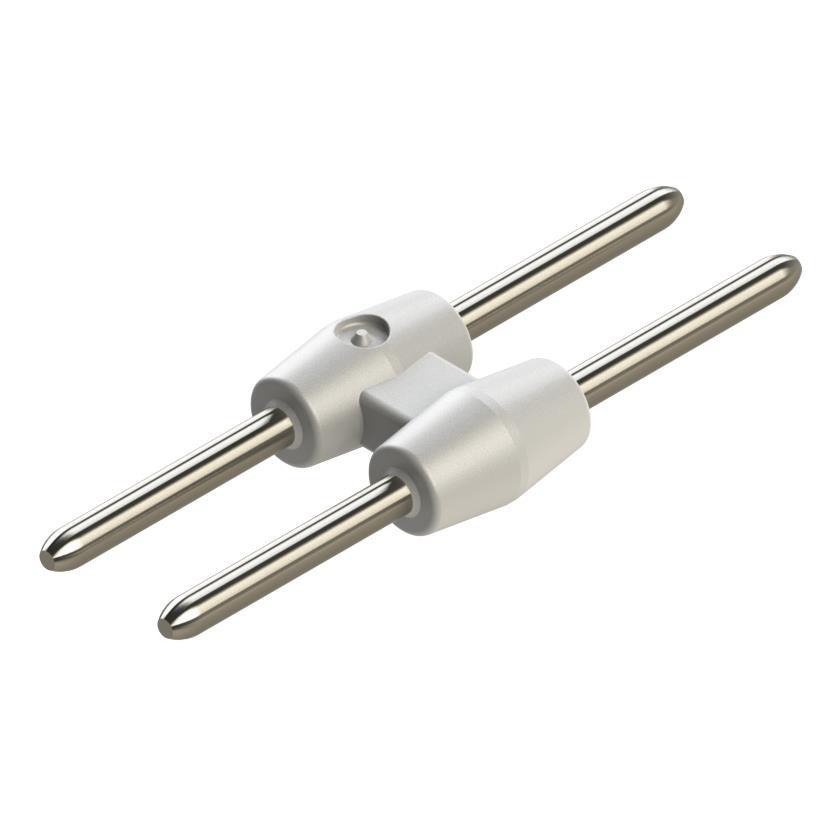

KYOCERA AVX 109296002680916
Image shown is a representation only
Manufacturer
Manufacturer No
109296002680916
Packaging
Tape & Reel (TR)
Description
2 POSITION WHITE JUMPER PIN WITH
Detailed Description
2 (1 x 2) Position Shunt Connector Natural Insulated 0.118" (3.00mm) Tin-Lead
DataSheet
Type
Insulated
Color
Natural
Pitch
0.118" (3.00mm)
Gender
Male Pins
Series
9296
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
KYOCERA AVX
Contact Finish
Tin-Lead
Voltage Rating
300V
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Current Rating (Amps)
5A
Material Flammability Rating
UL94 V-0
Number of Positions or Pins (Grid)
2 (1 x 2)
| Attribute | Value |
|---|---|
| Type | Insulated |
| Color | Natural |
| Pitch | 0.118" (3.00mm) |
| Gender | Male Pins |
| Series | 9296 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | KYOCERA AVX |
| Contact Finish | Tin-Lead |
| Voltage Rating | 300V |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Current Rating (Amps) | 5A |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
