Step1: Product
KOINO NS22-SL21A01B

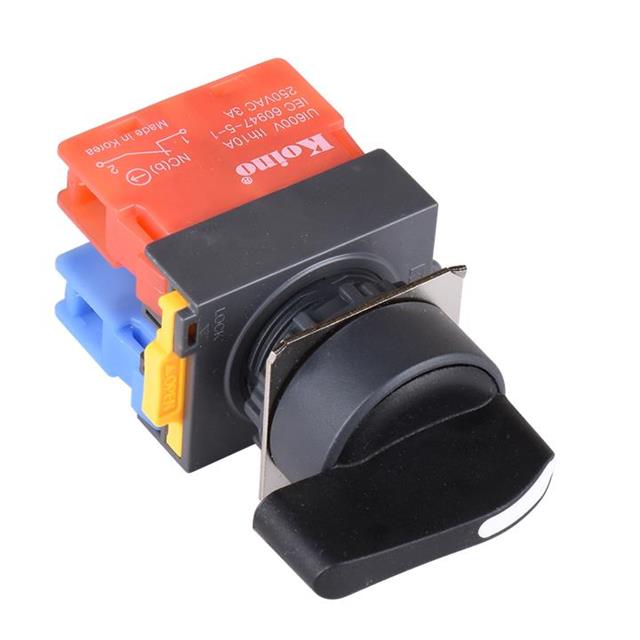

Image shown is a representation only
Manufacturer
Manufacturer No
NS22-SL21A01B
Packaging
Bulk
Description
SWITCH SELECT 2POS DPST 3A 250V
Detailed Description
Selector Switch 2 Position DPST-NO/NC 3A (AC), 270mA (DC) 250 V Panel Mount
DataSheet
Type
Standard
Series
NS22
Circuit
DPST-NO/NC
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Manufacturer
KOINO
Mounting Type
Panel Mount
Approval Agency
CE, UL
Electrical Life
500,000 Cycles
Mechanical Life
1,000,000 Cycles
Switch Function
Off-On
Termination Style
Screw Terminal
Ingress Protection
IP65 - Dust Tight, Water Resistant
Depth Behind Flange
45.60mm
Number of Positions
2
Voltage Rating - AC
250 V
Voltage Rating - DC
250 V
Current Rating (Amps)
3A (AC), 270mA (DC)
Operating Temperature
-25°C ~ 70°C
Panel Cutout Dimensions
Circular - 22.30mm Dia
| Attribute | Value |
|---|---|
| Type | Standard |
| Series | NS22 |
| Circuit | DPST-NO/NC |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Manufacturer | KOINO |
| Mounting Type | Panel Mount |
| Approval Agency | CE, UL |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Depth Behind Flange | 45.60mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
| Current Rating (Amps) | 3A (AC), 270mA (DC) |
| Operating Temperature | -25°C ~ 70°C |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
