Step1: Product
Knitter-Switch SMS 502

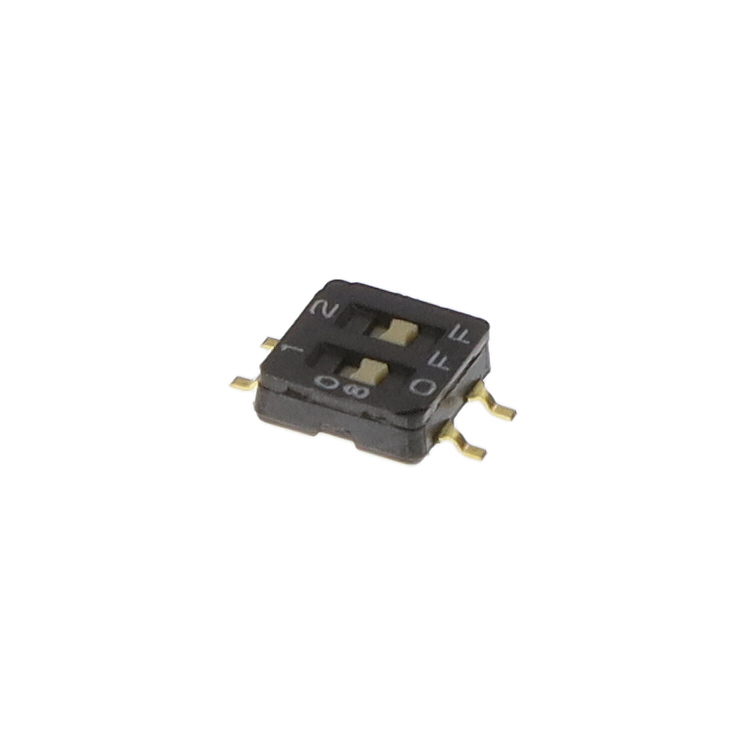

Image shown is a representation only
Manufacturer
Manufacturer No
SMS 502
Packaging
Tube
Description
DIP SWITCH 6.30 MM
Detailed Description
Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 100mA 50VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.248" (6.31mm)
Series
SMS
Circuit
SPST
Washable
Yes
Packaging
Tube
Part Status
Active
Manufacturer
Knitter-Switch
Actuator Type
Slide (Standard)
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
50VDC
Mechanical Life
1,000 Cycles
Contact Material
Beryllium Copper
Termination Style
Gull Wing
Height Above Board
0.089" (2.25mm)
Number of Positions
2
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 105°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.248" (6.31mm) |
| Series | SMS |
| Circuit | SPST |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | Knitter-Switch |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 50VDC |
| Mechanical Life | 1,000 Cycles |
| Contact Material | Beryllium Copper |
| Termination Style | Gull Wing |
| Height Above Board | 0.089" (2.25mm) |
| Number of Positions | 2 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 105°C |
