Step1: Product
Knitter-Switch DRS 3010

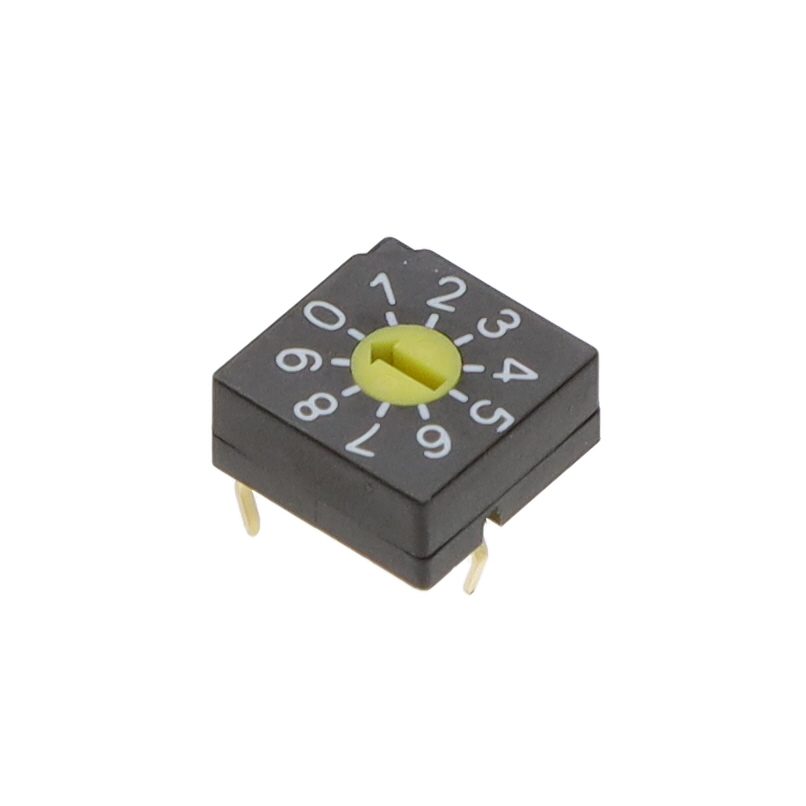

Image shown is a representation only
Manufacturer
Manufacturer No
DRS 3010
Packaging
Tube
Description
SWITCH ROTARY BCD
Detailed Description
Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 30mA 15VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.394" (10.00mm)
Series
DRS
Circuit
BCD
Washable
Yes
Packaging
Tube
Part Status
Active
Manufacturer
Knitter-Switch
Actuator Type
Rotary for Tool
Body Material
Thermoplastic
Mounting Type
Through Hole
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
15VDC
Mechanical Life
20,000 Cycles
Contact Material
Phosphor Bronze
Termination Style
PC Pin
Height Above Board
0.189" (4.80mm)
Number of Positions
10
Current Rating (Amps)
30mA
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.394" (10.00mm) |
| Series | DRS |
| Circuit | BCD |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | Knitter-Switch |
| Actuator Type | Rotary for Tool |
| Body Material | Thermoplastic |
| Mounting Type | Through Hole |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 15VDC |
| Mechanical Life | 20,000 Cycles |
| Contact Material | Phosphor Bronze |
| Termination Style | PC Pin |
| Height Above Board | 0.189" (4.80mm) |
| Number of Positions | 10 |
| Current Rating (Amps) | 30mA |
| Operating Temperature | -25°C ~ 70°C |
