Step1: Product
knitter-inductive ICSC13650521LHA61

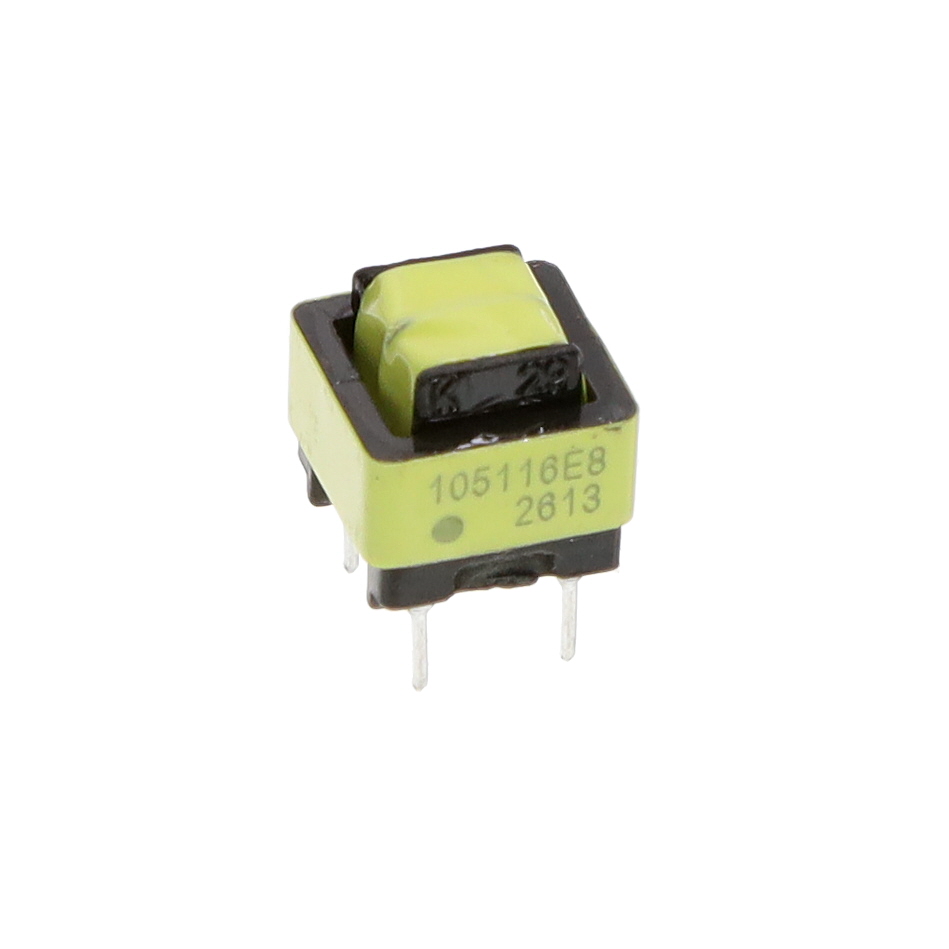

Image shown is a representation only
Manufacturer
Manufacturer No
ICSC13650521LHA61
Package
Horizontal, 4 PC Pin
Packaging
Tray
Description
CMC THT, 2 LINES, 13MH@10KHZ, 0,
Detailed Description
13 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.637Ohm
DataSheet
Series
ICSC
Packaging
Tray
Part Status
Active
Height (Max)
0.689" (17.50mm)
Manufacturer
knitter-inductive
Mounting Type
Through Hole
Package / Case
Horizontal, 4 PC Pin
Number of Lines
2
Size / Dimension
0.709" L x 0.630" W (18.00mm x 16.00mm)
Voltage Rating - AC
300V
Voltage Rating - DC
100V
Current Rating (Max)
500mA
Operating Temperature
-40°C ~ 120°C
Inductance @ Frequency
13 mH @ 10 kHz
DC Resistance (DCR) (Max)
1.637Ohm
| Attribute | Value |
|---|---|
| Series | ICSC |
| Packaging | Tray |
| Part Status | Active |
| Height (Max) | 0.689" (17.50mm) |
| Manufacturer | knitter-inductive |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 100V |
| Current Rating (Max) | 500mA |
| Operating Temperature | -40°C ~ 120°C |
| Inductance @ Frequency | 13 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 1.637Ohm |
