Step1: Product
Kingbright APTR3216SURCK

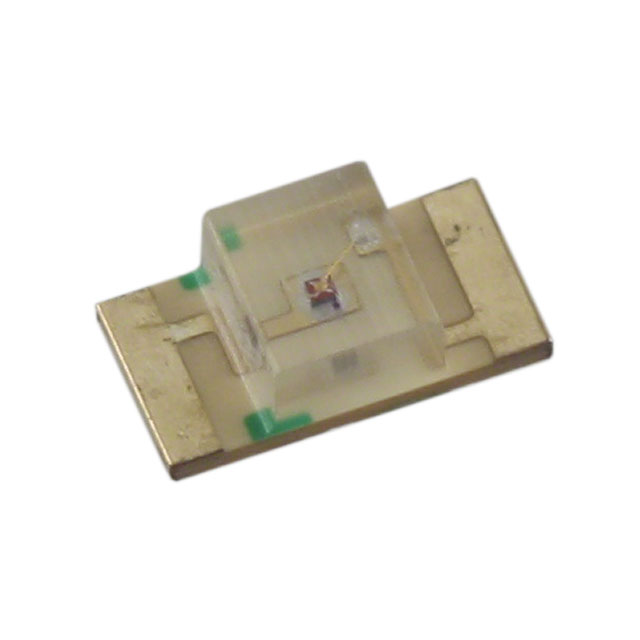

Image shown is a representation only
Manufacturer
Manufacturer No
APTR3216SURCK
Quantity
2,260
Availability
In Stock
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RED CLR CHIP SMD BOTTOM ENT
Detailed Description
Red 630nm LED Indication - Discrete 1.95V 1206 (3216 Metric)
Datasheet
Mfr
Kingbright
Color
Red
Series
Heli-R
Lens Size
1.40mm x 1.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Height (Max)
1.05mm
Configuration
Standard
Mounting Type
Surface Mount, Bottom Entry
Viewing Angle
120°
Current - Test
20mA
Package / Case
1206 (3216 Metric)
Size / Dimension
3.20mm L x 1.60mm W
Lens Transparency
Clear
Wavelength - Peak
645nm
Base Product Number
APTR3216
Millicandela Rating
80mcd
Wavelength - Dominant
630nm
Supplier Device Package
Chip LED
Voltage - Forward (Vf) (Typ)
1.95V
| Attribute | Value |
|---|---|
| Mfr | Kingbright |
| Color | Red |
| Series | Heli-R |
| Lens Size | 1.40mm x 1.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 1.05mm |
| Configuration | Standard |
| Mounting Type | Surface Mount, Bottom Entry |
| Viewing Angle | 120° |
| Current - Test | 20mA |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 645nm |
| Base Product Number | APTR3216 |
| Millicandela Rating | 80mcd |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | Chip LED |
| Voltage - Forward (Vf) (Typ) | 1.95V |
