Step1: Product

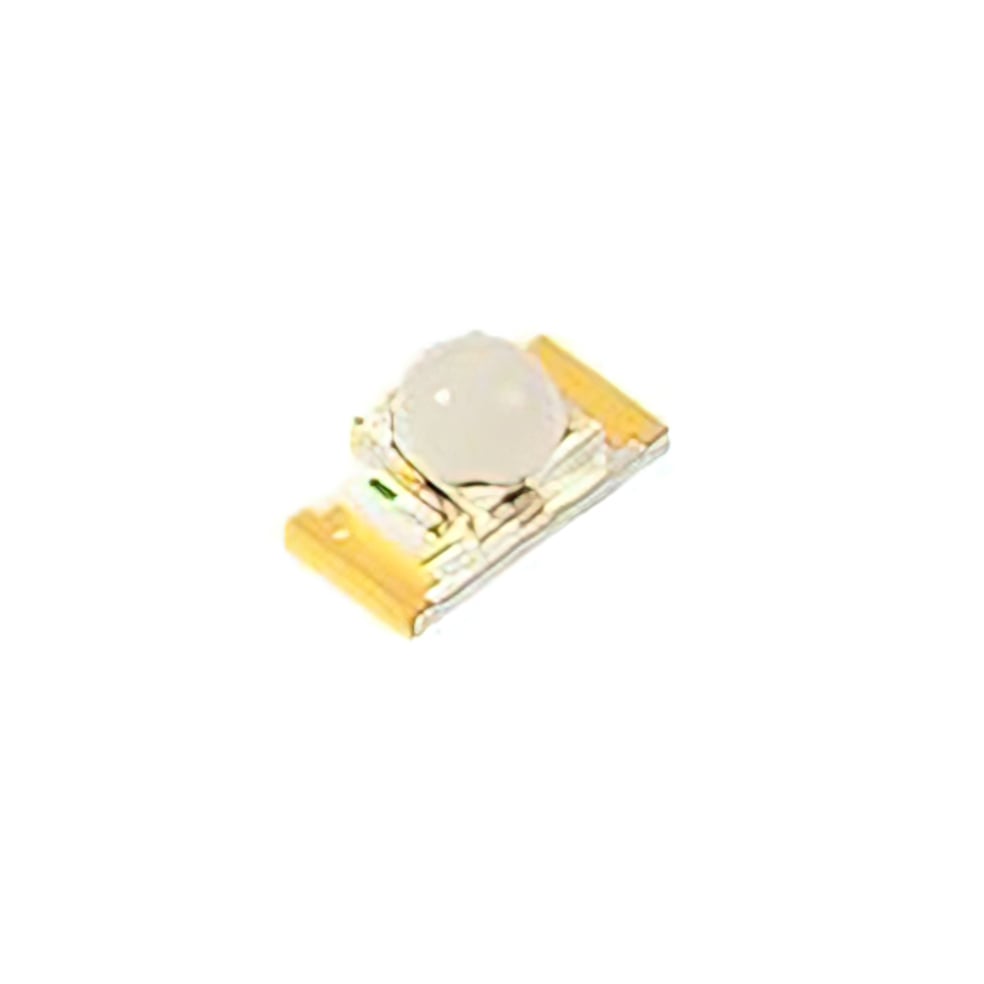

Kingbright APTD3216SEC
Image shown is a representation only
Manufacturer
Manufacturer No
APTD3216SEC
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
3.2X1.6MM,ORG SMD LED
Detailed Description
Orange 601nm LED Indication - Discrete 2V 1206 (3216 Metric)
DataSheet
Mfr
Kingbright
Color
Orange
Lens Size
1.60mm Dia
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
Colorless
Lens Style
Round with Domed Top
Part Status
Active
Height (Max)
2.00mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
50°
Current - Test
20mA
Package / Case
1206 (3216 Metric)
Size / Dimension
3.20mm L x 1.60mm W
Lens Transparency
Clear
Wavelength - Peak
610nm
Millicandela Rating
1200mcd
Wavelength - Dominant
601nm
Supplier Device Package
1206
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Mfr | Kingbright |
| Color | Orange |
| Lens Size | 1.60mm Dia |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Part Status | Active |
| Height (Max) | 2.00mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 50° |
| Current - Test | 20mA |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 610nm |
| Millicandela Rating | 1200mcd |
| Wavelength - Dominant | 601nm |
| Supplier Device Package | 1206 |
| Voltage - Forward (Vf) (Typ) | 2V |
