Step1: Product
Kingbright AP2012SGD3

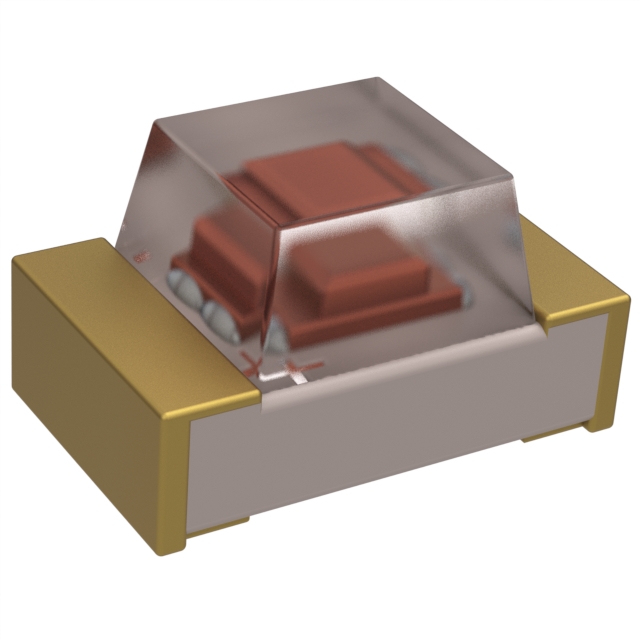

Image shown is a representation only
Manufacturer
Manufacturer No
AP2012SGD3
Package
2-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED GREEN DIFFUSED 2SMD
Detailed Description
Green 568nm LED Indication - Discrete 2.2V 2-SMD, No Lead
DataSheet
Mfr
Kingbright
Color
Green
Lens Size
1.30mm x 1.25mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
Green
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
1.20mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
160°
Current - Test
20mA
Package / Case
2-SMD, No Lead
Size / Dimension
2.00mm L x 1.25mm W
Lens Transparency
Diffused
Wavelength - Peak
565nm
Millicandela Rating
8mcd
Wavelength - Dominant
568nm
Voltage - Forward (Vf) (Typ)
2.2V
| Attribute | Value |
|---|---|
| Mfr | Kingbright |
| Color | Green |
| Lens Size | 1.30mm x 1.25mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | Green |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 1.20mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 160° |
| Current - Test | 20mA |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 565nm |
| Millicandela Rating | 8mcd |
| Wavelength - Dominant | 568nm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
