Step1: Product

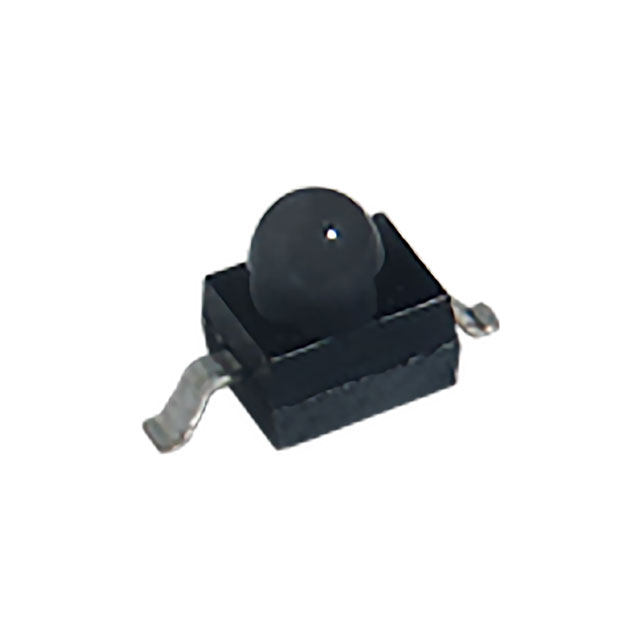

Kingbright AM2520P3BT03
Image shown is a representation only
Manufacturer
Manufacturer No
AM2520P3BT03
Quantity
100
Availability
In Stock
Package
2-SMD, Gull Wing
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SENSOR PHOTO 940NM TOP VIEW 2SMD
Detailed Description
Phototransistors 940nm Top View 2-SMD, Gull Wing
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Wavelength
940nm
Orientation
Top View
Part Status
Active
Power - Max
100 mW
Manufacturer
Kingbright
Mounting Type
Surface Mount
Viewing Angle
20°
Package / Case
2-SMD, Gull Wing
Base Product Number
AM2520
Operating Temperature
-40°C ~ 85°C
Current - Dark (Id) (Max)
100 nA
Voltage - Collector Emitter Breakdown (Max)
30 V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Wavelength | 940nm |
| Orientation | Top View |
| Part Status | Active |
| Power - Max | 100 mW |
| Manufacturer | Kingbright |
| Mounting Type | Surface Mount |
| Viewing Angle | 20° |
| Package / Case | 2-SMD, Gull Wing |
| Base Product Number | AM2520 |
| Operating Temperature | -40°C ~ 85°C |
| Current - Dark (Id) (Max) | 100 nA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
