Step1: Product
Kinetic Technologies KTS1698AEDAB-TA

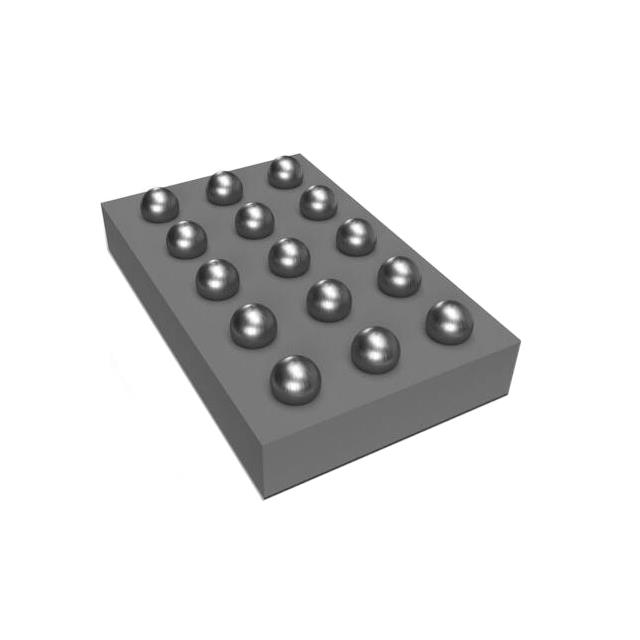

Image shown is a representation only
Manufacturer
Manufacturer No
KTS1698AEDAB-TA
Package
15-WFBGA, WLCSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
5ARMS VBUS CURRENT-SINK PROTECTI
Detailed Description
Power Switch/Driver 1:1 5A 15-WLCSP (2.62x1.64)
DataSheet
Mfr
Kinetic Technologies
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Part Status
Active
Switch Type
General Purpose
Rds On (Typ)
25mOhm
Mounting Type
Surface Mount
Package / Case
15-WFBGA, WLCSP
Voltage - Load
3V ~ 23V
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, Short Circuit
Number of Outputs
1
Base Product Number
KTS1698
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 85°C
Current - Output (Max)
5A
Supplier Device Package
15-WLCSP (2.62x1.64)
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Kinetic Technologies |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Part Status | Active |
| Switch Type | General Purpose |
| Rds On (Typ) | 25mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 15-WFBGA, WLCSP |
| Voltage - Load | 3V ~ 23V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, Short Circuit |
| Number of Outputs | 1 |
| Base Product Number | KTS1698 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 85°C |
| Current - Output (Max) | 5A |
| Supplier Device Package | 15-WLCSP (2.62x1.64) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
