Step1: Product
KEMET UC2-5NU

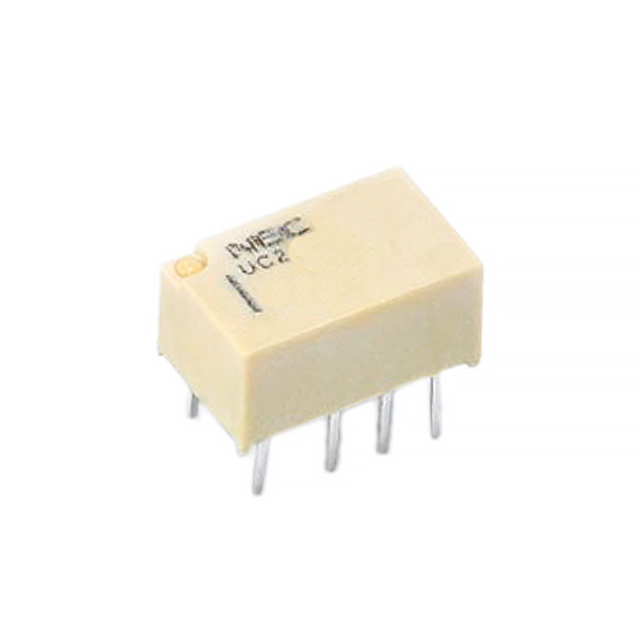

Image shown is a representation only
Manufacturer
Manufacturer No
UC2-5NU
Quantity
48
Availability
In Stock
Packaging
Tube
Description
RELAY GENERAL PURPOSE DPDT 1A 5V
Detailed Description
General Purpose Relay DPDT (2 Form C) Through Hole
DataSheet
Series
UC2
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Coil Current
28 mA
Coil Voltage
5VDC
Contact Form
DPDT (2 Form C)
Manufacturer
KEMET
Operate Time
2 ms
Release Time
1 ms
Mounting Type
Through Hole
Approval Agency
CSA, TUV, UL
Coil Resistance
178 Ohms
Contact Material
Silver Alloy, Gold Alloy
Switching Voltage
250VAC, 220VDC - Max
Termination Style
PC Pin
Base Product Number
UC2-5N
Load - Max Switching
250VA, 220W
Must Operate Voltage
3.75 VDC
Must Release Voltage
0.5 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
1 A
| Attribute | Value |
|---|---|
| Series | UC2 |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 28 mA |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Manufacturer | KEMET |
| Operate Time | 2 ms |
| Release Time | 1 ms |
| Mounting Type | Through Hole |
| Approval Agency | CSA, TUV, UL |
| Coil Resistance | 178 Ohms |
| Contact Material | Silver Alloy, Gold Alloy |
| Switching Voltage | 250VAC, 220VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | UC2-5N |
| Load - Max Switching | 250VA, 220W |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 1 A |
