Step1: Product
KEMET R82DC3680AA60J

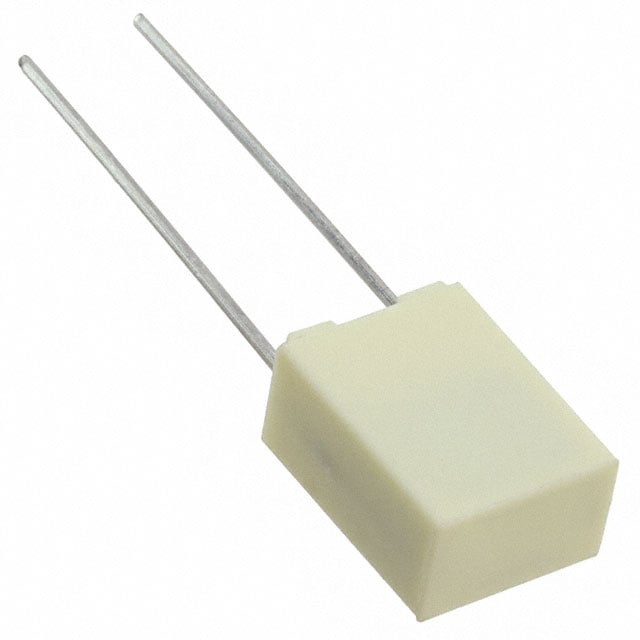

Image shown is a representation only
Manufacturer
Manufacturer No
R82DC3680AA60J
Quantity
148
Availability
In Stock
Package
Radial
Packaging
Bulk
Description
CAP FILM 0.68UF 5% 63VDC RADIAL
Detailed Description
0.68 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
DataSheet
Mfr
KEMET
Series
R82
Ratings
AEC-Q200
Packaging
Bulk
Tolerance
±5%
Capacitance
0.68 µF
Part Status
Active
Termination
PC Pins
Applications
Automotive
Lead Spacing
0.197" (5.00mm)
Mounting Type
Through Hole
Package / Case
Radial
Size / Dimension
0.283" L x 0.177" W (7.20mm x 4.50mm)
Base Product Number
R82DC
Dielectric Material
Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Voltage Rating - AC
40V
Voltage Rating - DC
63V
Height - Seated (Max)
0.378" (9.60mm)
Operating Temperature
-55°C ~ 105°C
| Attribute | Value |
|---|---|
| Mfr | KEMET |
| Series | R82 |
| Ratings | AEC-Q200 |
| Packaging | Bulk |
| Tolerance | ±5% |
| Capacitance | 0.68 µF |
| Part Status | Active |
| Termination | PC Pins |
| Applications | Automotive |
| Lead Spacing | 0.197" (5.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283" L x 0.177" W (7.20mm x 4.50mm) |
| Base Product Number | R82DC |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 63V |
| Height - Seated (Max) | 0.378" (9.60mm) |
| Operating Temperature | -55°C ~ 105°C |
