Step1: Product
KEMET PES228NKP3560QE4

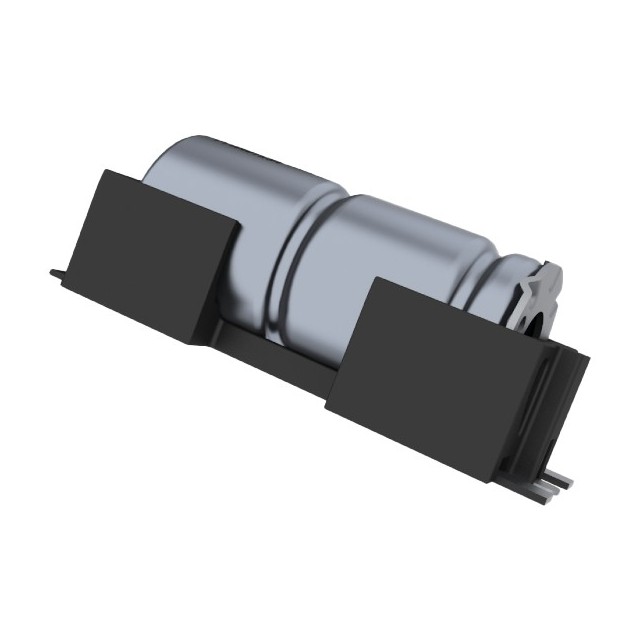

Image shown is a representation only
Manufacturer
Manufacturer No
PES228NKP3560QE4
Package
Nonstandard SMD
Packaging
Tray
Description
ALU CAP 560UF 80V SMD CROWN
Detailed Description
560 µF 80 V Aluminum Electrolytic Capacitors Nonstandard SMD 123mOhm @ 100Hz 6300 Hrs @ 125°C
DataSheet
Mfr
KEMET
Series
PES228
Ratings
AEC-Q200
Packaging
Tray
Tolerance
-10%, +30%
Capacitance
560 µF
Part Status
Active
Applications
Automotive
Polarization
Polar
Mounting Type
Surface Mount
Package / Case
Nonstandard SMD
Voltage - Rated
80 V
Lifetime @ Temp.
6300 Hrs @ 125°C
Size / Dimension
1.693" L x 0.709" W (43.00mm x 18.00mm)
Height - Seated (Max)
0.697" (17.70mm)
Operating Temperature
-40°C ~ 150°C
Ripple Current @ Low Frequency
1.82 A @ 100 Hz
Ripple Current @ High Frequency
5.408 A @ 100 kHz
ESR (Equivalent Series Resistance)
123mOhm @ 100Hz
| Attribute | Value |
|---|---|
| Mfr | KEMET |
| Series | PES228 |
| Ratings | AEC-Q200 |
| Packaging | Tray |
| Tolerance | -10%, +30% |
| Capacitance | 560 µF |
| Part Status | Active |
| Applications | Automotive |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Voltage - Rated | 80 V |
| Lifetime @ Temp. | 6300 Hrs @ 125°C |
| Size / Dimension | 1.693" L x 0.709" W (43.00mm x 18.00mm) |
| Height - Seated (Max) | 0.697" (17.70mm) |
| Operating Temperature | -40°C ~ 150°C |
| Ripple Current @ Low Frequency | 1.82 A @ 100 Hz |
| Ripple Current @ High Frequency | 5.408 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 123mOhm @ 100Hz |
