Step1: Product

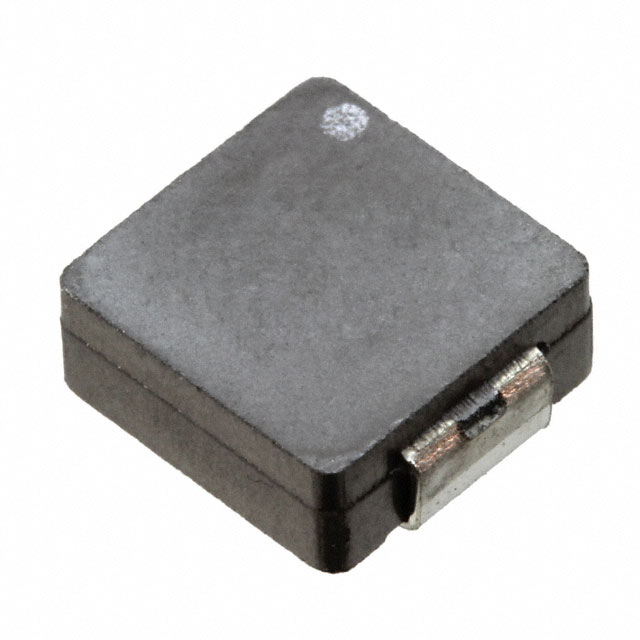

KEMET MPLC0730L1R5
Image shown is a representation only
Manufacturer
Manufacturer No
MPLC0730L1R5
Package
2-SMD, J-Lead
Packaging
Tape & Reel (TR)
Description
FIXED IND 1.5UH 8.6A 15 MOHM SMD
Detailed Description
1.5 µH Shielded Wirewound Inductor 8.6 A 15mOhm Max 2-SMD, J-Lead
DataSheet
Mfr
KEMET
Type
Wirewound
Series
MPLC
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±20%
Inductance
1.5 µH
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
2-SMD, J-Lead
Size / Dimension
0.303" L x 0.264" W (7.70mm x 6.70mm)
Base Product Number
MPLC0730
DC Resistance (DCR)
15mOhm Max
Current Rating (Amps)
8.6 A
Height - Seated (Max)
0.118" (3.00mm)
Operating Temperature
-20°C ~ 120°C
Current - Saturation (Isat)
8.8A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | KEMET |
| Type | Wirewound |
| Series | MPLC |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 1.5 µH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension | 0.303" L x 0.264" W (7.70mm x 6.70mm) |
| Base Product Number | MPLC0730 |
| DC Resistance (DCR) | 15mOhm Max |
| Current Rating (Amps) | 8.6 A |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Operating Temperature | -20°C ~ 120°C |
| Current - Saturation (Isat) | 8.8A |
| Inductance Frequency - Test | 100 kHz |
