Step1: Product

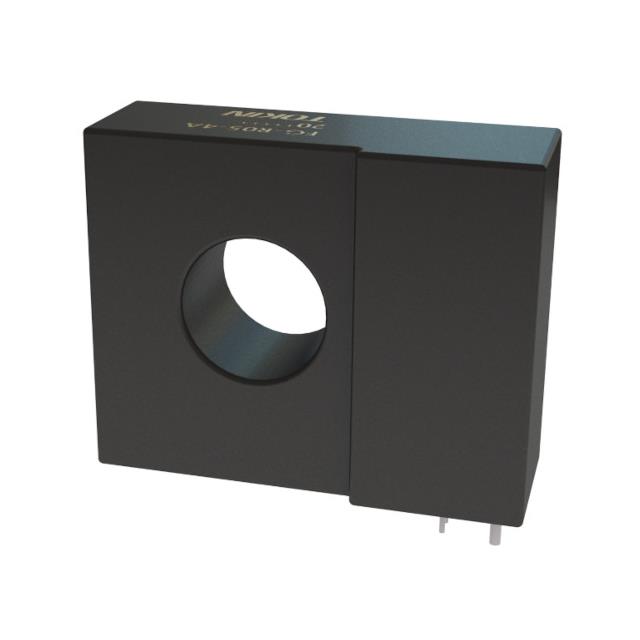

KEMET FG-R05-4BA
Image shown is a representation only
Manufacturer
Manufacturer No
FG-R05-4BA
Package
Module, Single Pass Through
Packaging
Box
Description
CURRENT SENSOR FLUX GATE/OL 50MA
Detailed Description
Current Sensor 50mA 1 Channel Flux Gate, Open Loop Bidirectional Module, Single Pass Through
DataSheet
Mfr
KEMET
Output
Ratiometric, Voltage
Series
FG
Frequency
DC ~ 55Hz
Packaging
Box
Part Status
Active
Sensitivity
40V/A
Sensor Type
Flux Gate, Open Loop
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
250ms (AC), 1s (DC)
Package / Case
Module, Single Pass Through
Voltage - Supply
4.75V ~ 5.25V
Current - Sensing
50mA
Number of Channels
1
Operating Temperature
-40°C ~ 105°C
Current - Supply (Max)
13mA (Typ)
| Attribute | Value |
|---|---|
| Mfr | KEMET |
| Output | Ratiometric, Voltage |
| Series | FG |
| Frequency | DC ~ 55Hz |
| Packaging | Box |
| Part Status | Active |
| Sensitivity | 40V/A |
| Sensor Type | Flux Gate, Open Loop |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 250ms (AC), 1s (DC) |
| Package / Case | Module, Single Pass Through |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Sensing | 50mA |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 105°C |
| Current - Supply (Max) | 13mA (Typ) |
