Step1: Product
KEL USA XSLS00-40-A

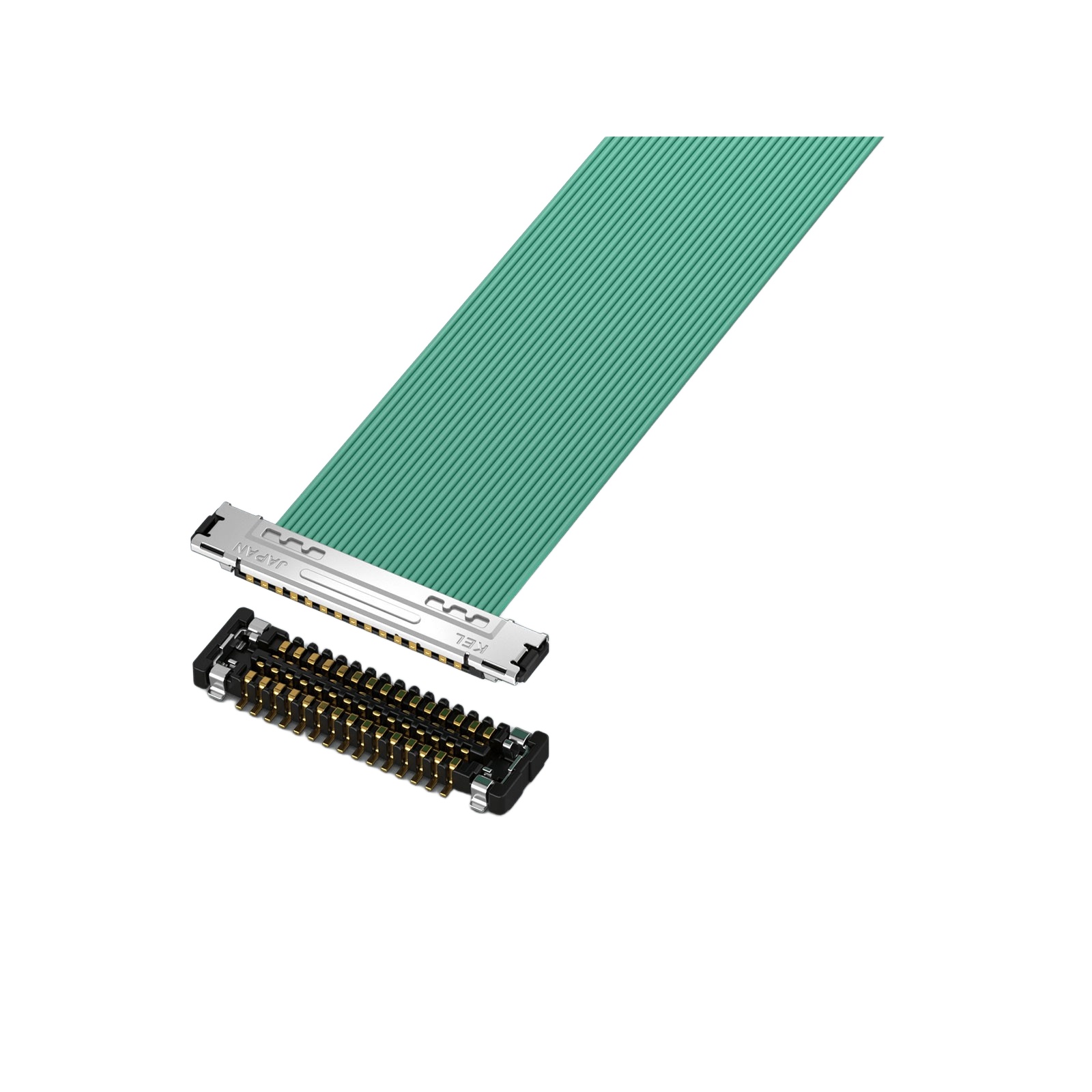

Image shown is a representation only
Manufacturer
Manufacturer No
XSLS00-40-A
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MICRO COAX RECEP 40P STRAIGHT
Detailed Description
40 Position Connector Receptacle 0.010" (0.25mm) Surface Mount
DataSheet
Pitch
0.010" (0.25mm)
Series
XSLS
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
KEL USA
Housing Color
Black
Mating Cycles
30
Mounting Type
Surface Mount
Contact Finish
Gold-Nickel
Voltage Rating
100V
Locking Feature
Latch Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Height Above Board
0.057" (1.45mm)
Number of Positions
40
Current Rating (Amps)
0.25A per Contact
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Receptacle
Contact Finish Thickness
1.97µin (0.050µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.010" (0.25mm) |
| Series | XSLS |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | KEL USA |
| Housing Color | Black |
| Mating Cycles | 30 |
| Mounting Type | Surface Mount |
| Contact Finish | Gold-Nickel |
| Voltage Rating | 100V |
| Locking Feature | Latch Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Height Above Board | 0.057" (1.45mm) |
| Number of Positions | 40 |
| Current Rating (Amps) | 0.25A per Contact |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Receptacle |
| Contact Finish Thickness | 1.97µin (0.050µm) |
| Material Flammability Rating | UL94 V-0 |
