Step1: Product

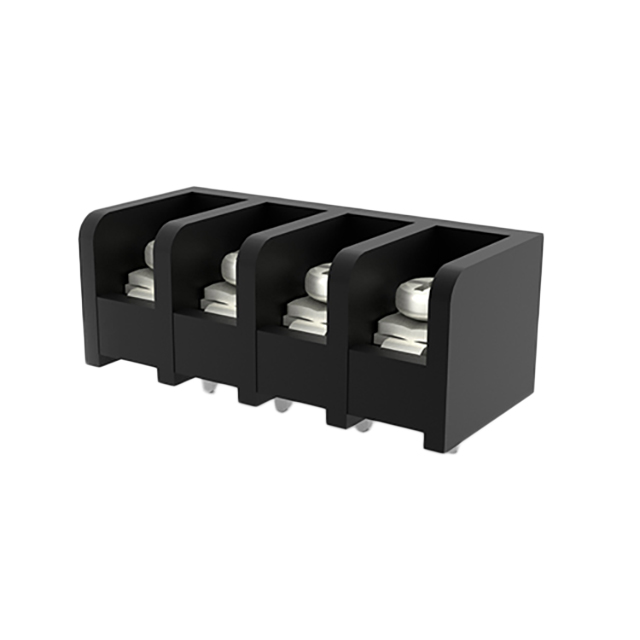

KaiFeng Electronics HB-825-8.25-4P-1K
Image shown is a representation only
Manufacturer
Manufacturer No
HB-825-8.25-4P-1K
Packaging
Bulk
Description
TERM BLOCK 4POS 8.25MM
Detailed Description
4 Position Terminal Block 0.325" (8.25mm) Vertical 180° Board Mount
DataSheet
Color
Multiple
Pitch
0.325" (8.25mm)
Packaging
Bulk
Screw Size
M3.5
Part Status
Active
Manufacturer
KaiFeng Electronics
Current - IEC
24A
Mounting Type
Board Mount
Torque - Screw
0.8 Nm (7.1 Lb-In)
Plug Wire Entry
180°
Contact Material
Brass
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Levels
1
Termination Style
Screw
Header Orientation
Vertical
Number of Positions
4
Positions Per Level
4
Contact Mating Finish
Tin-Lead
Operating Temperature
-40°C ~ 105°C
Wire Gauge or Range - AWG
12-22 AWG
Wire Gauge or Range - mm²
2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Multiple |
| Pitch | 0.325" (8.25mm) |
| Packaging | Bulk |
| Screw Size | M3.5 |
| Part Status | Active |
| Manufacturer | KaiFeng Electronics |
| Current - IEC | 24A |
| Mounting Type | Board Mount |
| Torque - Screw | 0.8 Nm (7.1 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Levels | 1 |
| Termination Style | Screw |
| Header Orientation | Vertical |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Contact Mating Finish | Tin-Lead |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 2.5mm² |
| Material Flammability Rating | UL94 V-0 |
