Step1: Product

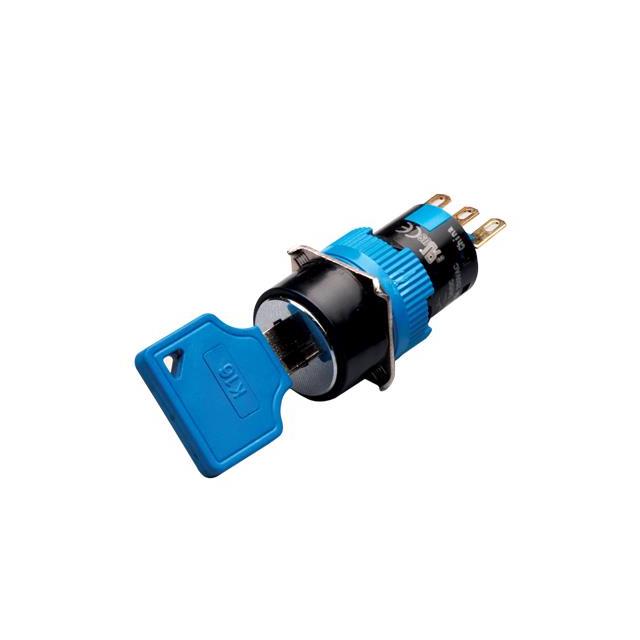

Kacon K16-612
Image shown is a representation only
Manufacturer
Manufacturer No
K16-612
Packaging
Bulk
Description
SWITCH KEYLOCK 2POS DPDT 3A 250V
Detailed Description
Keylock Switch 2 Position DPDT 3A (AC/DC) 250 VAC 110 VDC Panel Mount
DataSheet
Series
K16
Circuit
DPDT
Packaging
Bulk
Part Status
Active
Manufacturer
Kacon
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
90°
Contact Finish
Gold
Contact Timing
Not Specified
Electrical Life
100,000 Cycles
Mechanical Life
250,000 Cycles
Switch Function
On-On
Contact Material
Silver Alloy
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Depth Behind Flange
30.00mm
Number of Positions
2
Voltage Rating - AC
250 V
Voltage Rating - DC
110 V
Current Rating (Amps)
3A (AC/DC)
Operating Temperature
-25°C ~ 55°C
Key Removable Positions
All
Panel Cutout Dimensions
Circular - 16.00mm Dia
| Attribute | Value |
|---|---|
| Series | K16 |
| Circuit | DPDT |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Kacon |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 90° |
| Contact Finish | Gold |
| Contact Timing | Not Specified |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 250,000 Cycles |
| Switch Function | On-On |
| Contact Material | Silver Alloy |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Depth Behind Flange | 30.00mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 110 V |
| Current Rating (Amps) | 3A (AC/DC) |
| Operating Temperature | -25°C ~ 55°C |
| Key Removable Positions | All |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
