Step1: Product

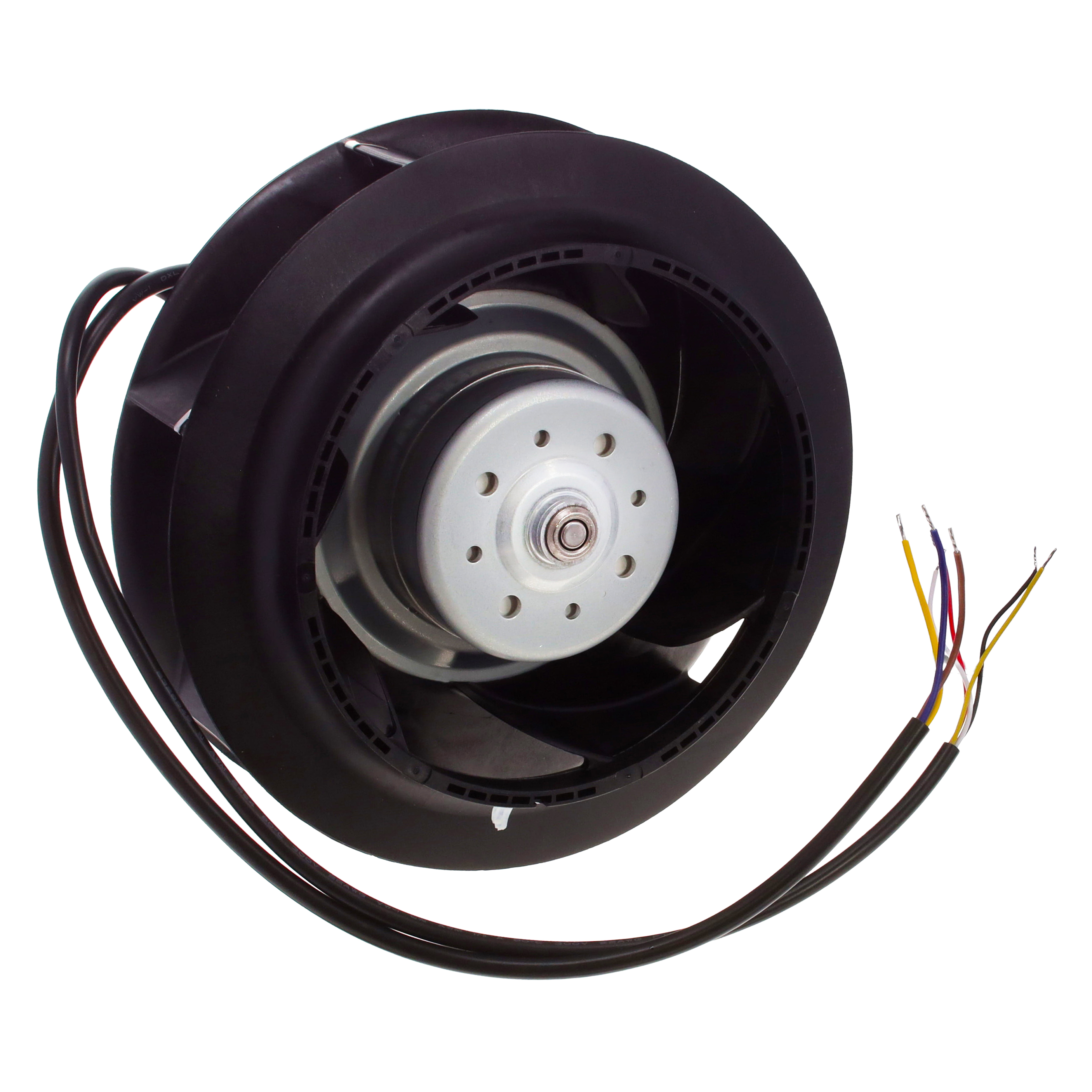

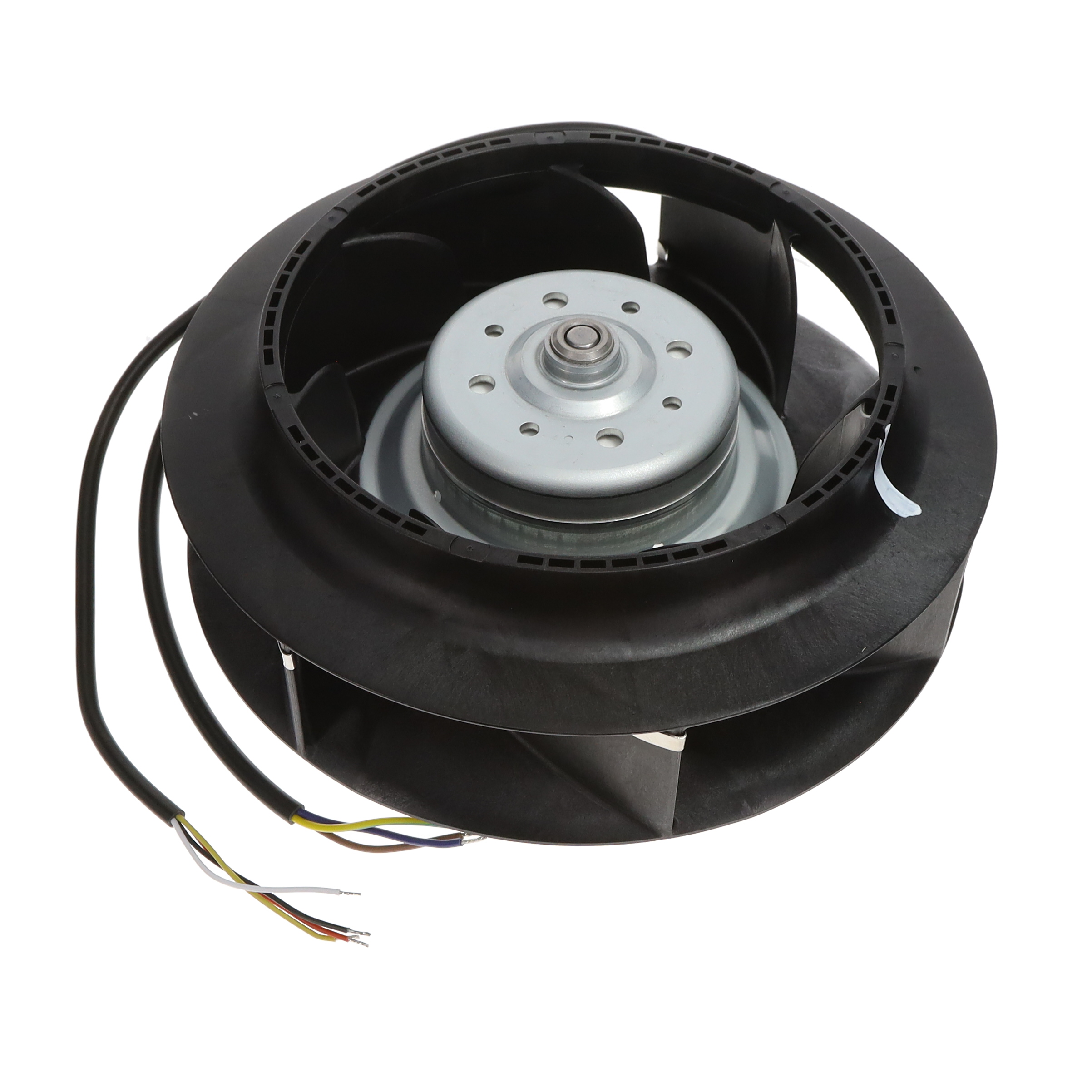

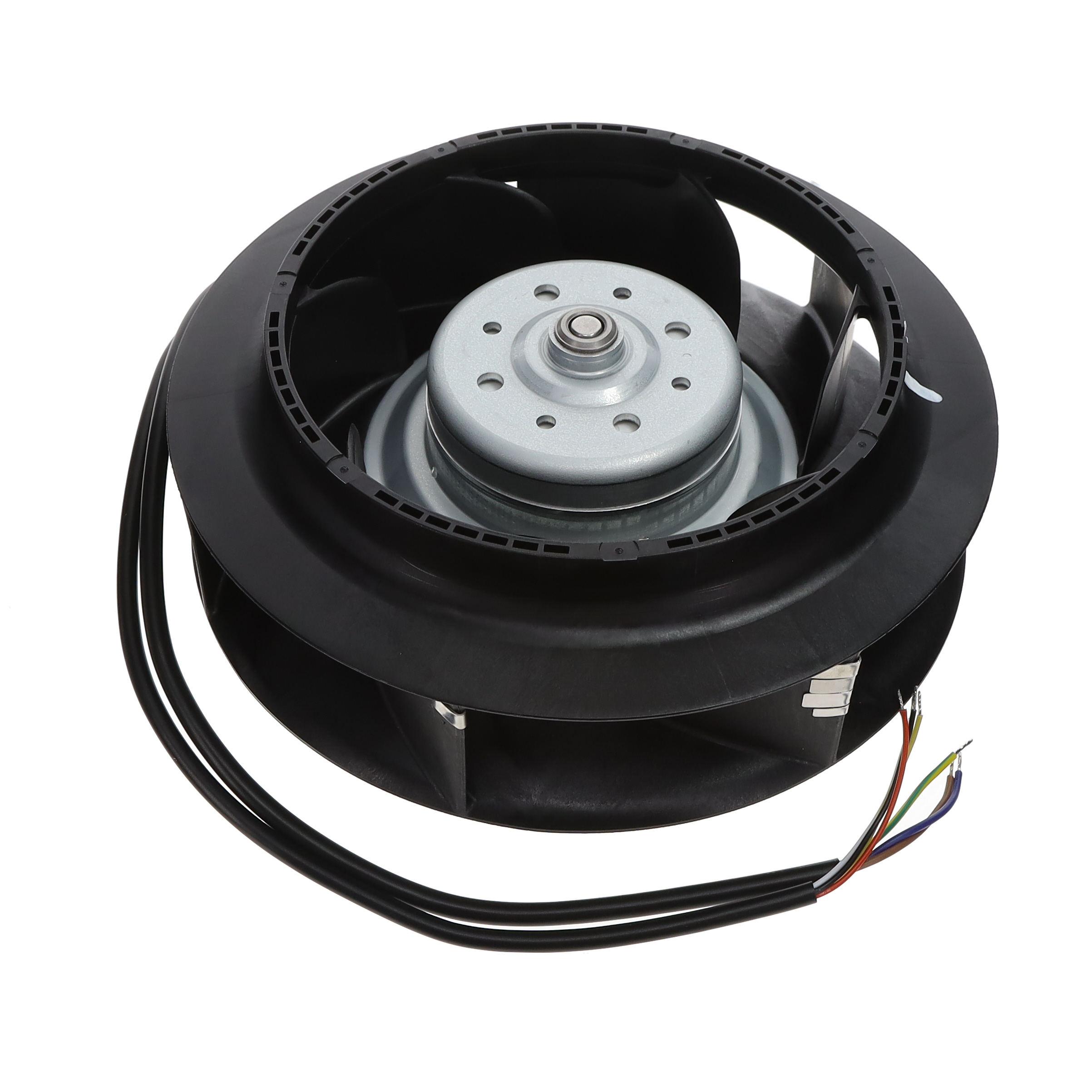

Johnson Motor ECO190CB235072212
Image shown is a representation only
Manufacturer
Manufacturer No
ECO190CB235072212
Packaging
Bulk
Description
FAN MOTOR IMPELLER ECO190CB ROUN
Detailed Description
Fan Motorized Impellers 230VAC Round - 190mm Dia Ball 291.0 CFM (8.15m³/min) 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals
DataSheet
RPM
3750 RPM
Width
94.00mm
Series
ECO
Air Flow
291.0 CFM (8.15m³/min)
Fan Type
Motorized Impellers
Features
PWM Control, Speed Sensor (Tach)
Packaging
Bulk
Part Status
Active
Termination
3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals
Bearing Type
Ball
Manufacturer
Johnson Motor
Power (Watts)
130W
Static Pressure
1.979 in H2O (492.9 Pa)
Voltage - Rated
230VAC
Material - Blade
Plastic
Material - Frame
Aluminum
Size / Dimension
Round - 190mm Dia
Ingress Protection
IP54 - Dust Protected, Water Resistant
Current Rating (Amps)
1.04A
Operating Temperature
-4 ~ 140°F (-20 ~ 60°C)
| Attribute | Value |
|---|---|
| RPM | 3750 RPM |
| Width | 94.00mm |
| Series | ECO |
| Air Flow | 291.0 CFM (8.15m³/min) |
| Fan Type | Motorized Impellers |
| Features | PWM Control, Speed Sensor (Tach) |
| Packaging | Bulk |
| Part Status | Active |
| Termination | 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals |
| Bearing Type | Ball |
| Manufacturer | Johnson Motor |
| Power (Watts) | 130W |
| Static Pressure | 1.979 in H2O (492.9 Pa) |
| Voltage - Rated | 230VAC |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension | Round - 190mm Dia |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Current Rating (Amps) | 1.04A |
| Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) |
