Step1: Product
Jaro Components Inc. HFI-100505-2N7S

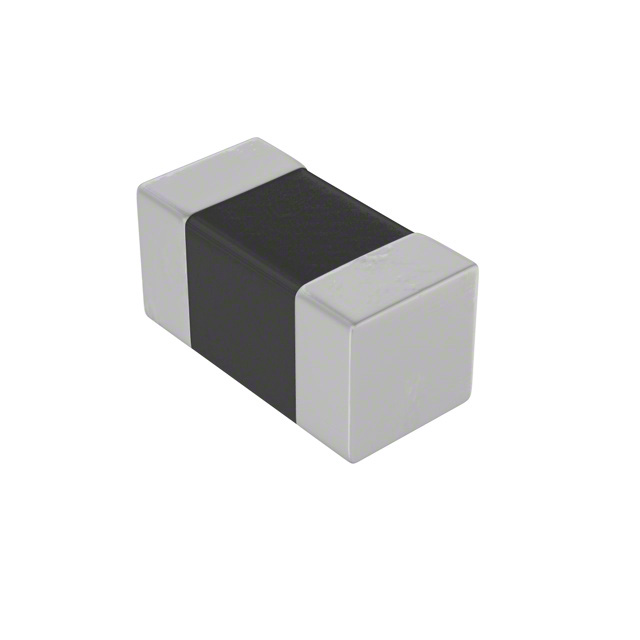

Image shown is a representation only
Manufacturer
Manufacturer No
HFI-100505-2N7S
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 2.7NH 300MA 170 MOHM
Detailed Description
2.7 nH Unshielded Drum Core, Wirewound Inductor 300 mA 170mOhm Max 0402 (1005 Metric)
DataSheet
Mfr
Jaro Components Inc.
Type
Drum Core, Wirewound
Series
HFI
Q @ Freq
8 @ 100MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±0.3nH
Inductance
2.7 nH
Part Status
Discontinued at DigiKey
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
DC Resistance (DCR)
170mOhm Max
Current Rating (Amps)
300 mA
Height - Seated (Max)
0.024" (0.60mm)
Supplier Device Package
0402 (1005 Metric)
Frequency - Self Resonant
6GHz
Inductance Frequency - Test
100 MHz
| Attribute | Value |
|---|---|
| Mfr | Jaro Components Inc. |
| Type | Drum Core, Wirewound |
| Series | HFI |
| Q @ Freq | 8 @ 100MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±0.3nH |
| Inductance | 2.7 nH |
| Part Status | Discontinued at DigiKey |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| DC Resistance (DCR) | 170mOhm Max |
| Current Rating (Amps) | 300 mA |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Supplier Device Package | 0402 (1005 Metric) |
| Frequency - Self Resonant | 6GHz |
| Inductance Frequency - Test | 100 MHz |
