Step1: Product
JAM SJA20-06WLB

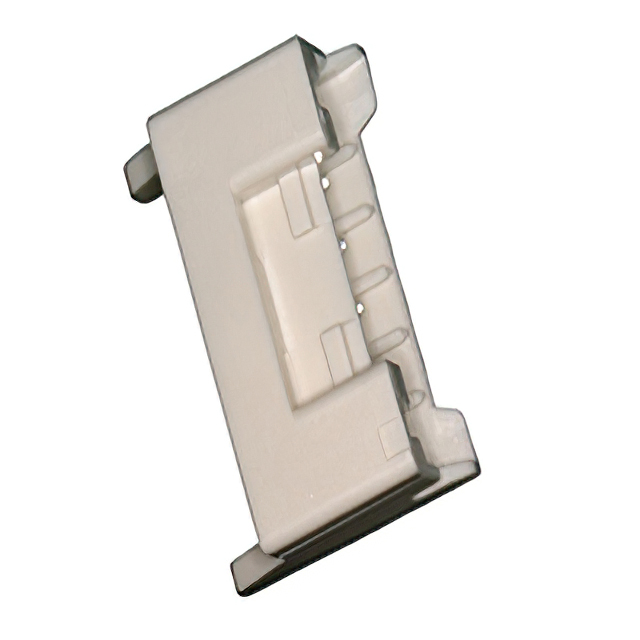

Image shown is a representation only
Manufacturer
Manufacturer No
SJA20-06WLB
Packaging
Bulk
Description
2 MM W TO B CONNECTOR 6P WAFER A
Detailed Description
Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)
DataSheet
Mfr
JAM
Style
Board to Cable/Wire
Series
SJA
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Press-Fit, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250VAC/DC
Contact Material
Brass
Insulation Color
White
Insulation Height
0.260" (6.60mm)
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
6
Contact Finish - Post
Tin
Contact Length - Post
0.122" (3.10mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JAM |
| Style | Board to Cable/Wire |
| Series | SJA |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Press-Fit, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.260" (6.60mm) |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122" (3.10mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
