Step1: Product

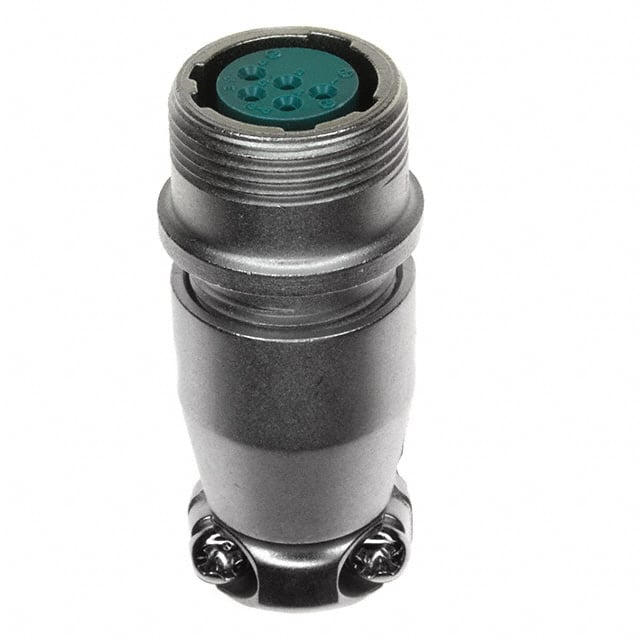

JAE Electronics SRCN1A13-5S
Image shown is a representation only
Manufacturer
Manufacturer No
SRCN1A13-5S
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT FMALE 5P SOLDER CUP
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
JAE Electronics
Color
Silver
Series
SRCN
Features
Backshell, Cable Clamp
Packaging
Bulk
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Applications
Communication Systems, Telecommunications, Test Equipment & Measurement
Shell Finish
Nickel
Cable Opening
0.335" (8.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
250VAC, 350VDC
Insert Material
Plastic
Contact Material
Copper Alloy
Primary Material
Metal
Base Product Number
SRCN1A13
Number of Positions
5
Shell Size - Insert
13-5
Current Rating (Amps)
5A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Aluminum Alloy, Nickel
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Color | Silver |
| Series | SRCN |
| Features | Backshell, Cable Clamp |
| Packaging | Bulk |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
| Shell Finish | Nickel |
| Cable Opening | 0.335" (8.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 250VAC, 350VDC |
| Insert Material | Plastic |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Base Product Number | SRCN1A13 |
| Number of Positions | 5 |
| Shell Size - Insert | 13-5 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Material Flammability Rating | UL94 V-0 |
