Step1: Product

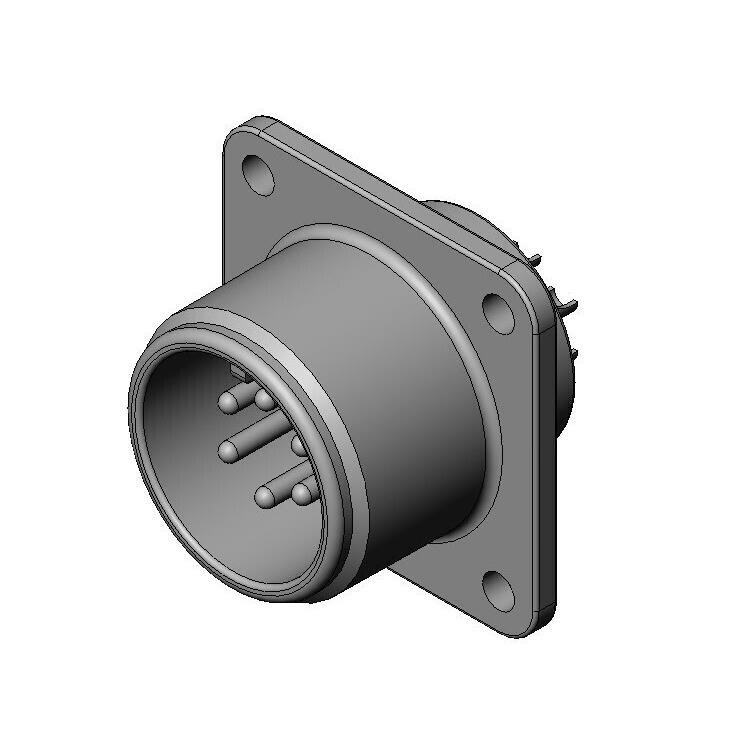

JAE Electronics N/MS3102A14S-6P

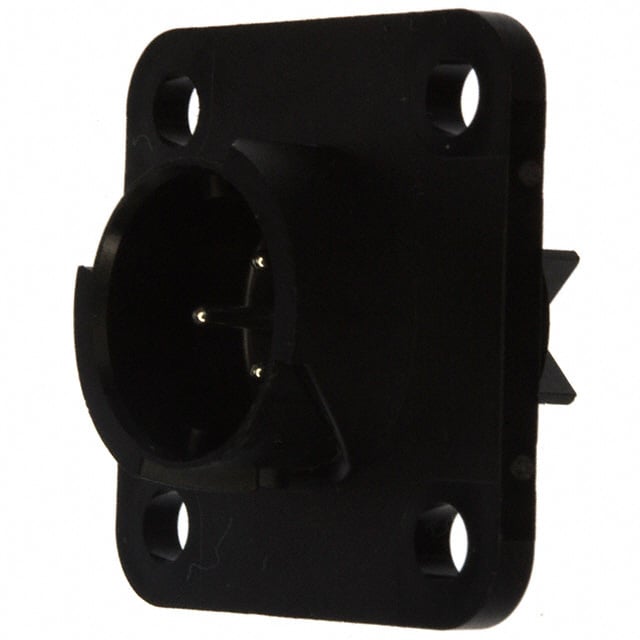

Image shown is a representation only
Manufacturer
Manufacturer No
N/MS3102A14S-6P
Packaging
Bulk
Description
Interconnect Circular
Detailed Description
6 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
JAE Electronics
Color
Black
Series
N/MS
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Shell Finish
Zinc
Cable Opening
0.906" (23.01mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
200VAC, 250VDC
Insert Material
Synthetic Resin
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Number of Positions
6
Shell Size - Insert
14S-6
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Color | Black |
| Series | N/MS |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Zinc |
| Cable Opening | 0.906" (23.01mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 200VAC, 250VDC |
| Insert Material | Synthetic Resin |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Number of Positions | 6 |
| Shell Size - Insert | 14S-6 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
