Step1: Product

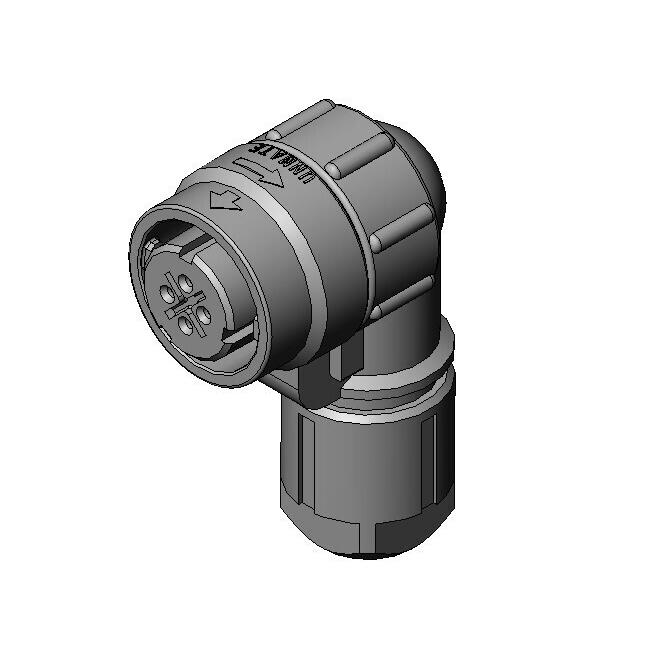

JAE Electronics JN2FS04FK2X-R
Image shown is a representation only
Manufacturer
Manufacturer No
JN2FS04FK2X-R
Packaging
Bulk
Description
CONN PLUG FMALE 4P SOLDER CUP
Detailed Description
4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
JAE Electronics
Color
Black
Series
JN2
Features
Backshell, Coupling Nut, Rotatable
Packaging
Bulk
Orientation
X
Part Status
Active
Termination
Solder Cup
Shell Finish
Zinc
Cable Opening
0.256" ~ 0.315" (6.50mm ~ 8.00mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Female Sockets
Fastening Type
Push-Twist
Shell Material
Zinc Alloy
Voltage Rating
200VAC
Insert Material
Synthetic Resin
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
JN2FS04F
Number of Positions
4 (3 + PE)
Shell Size - Insert
S
Current Rating (Amps)
5A
Operating Temperature
-20°C ~ 100°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Synthetic Resin
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Color | Black |
| Series | JN2 |
| Features | Backshell, Coupling Nut, Rotatable |
| Packaging | Bulk |
| Orientation | X |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Zinc |
| Cable Opening | 0.256" ~ 0.315" (6.50mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Push-Twist |
| Shell Material | Zinc Alloy |
| Voltage Rating | 200VAC |
| Insert Material | Synthetic Resin |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | JN2FS04F |
| Number of Positions | 4 (3 + PE) |
| Shell Size - Insert | S |
| Current Rating (Amps) | 5A |
| Operating Temperature | -20°C ~ 100°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Synthetic Resin |
