Step1: Product

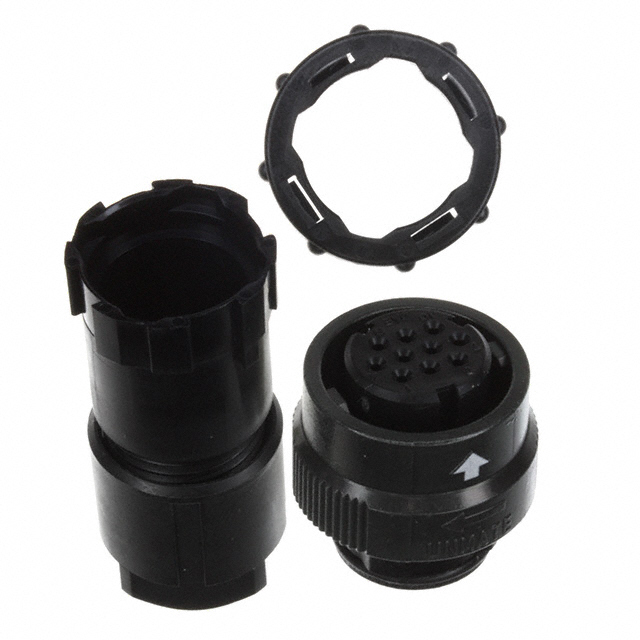

JAE Electronics JN2DS10SL1-R
Image shown is a representation only
Manufacturer
Manufacturer No
JN2DS10SL1-R
Packaging
Tray
Description
CONN PLG HSG FMALE 10POS INLINE
Detailed Description
10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
Datasheet
Note
Contacts Sold Separately
Type
For Female Sockets
Series
JN2
Features
Backshell, Coupling Nut
Packaging
Tray
Shielding
Unshielded
Orientation
N (Normal)
Contact Size
22
Contact Type
Crimp
Manufacturer
JAE Electronics
Shell Finish
Zinc
Contact Shape
Circular
Housing Color
Black
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug Housing
Fastening Type
Push-Twist
Shell Material
Zinc Alloy
Insert Material
Synthetic Resin
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
JN2DS10S
Number of Positions
10
Shell Size - Insert
S
Operating Temperature
-20°C ~ 100°C
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Female Sockets |
| Series | JN2 |
| Features | Backshell, Coupling Nut |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Contact Size | 22 |
| Contact Type | Crimp |
| Manufacturer | JAE Electronics |
| Shell Finish | Zinc |
| Contact Shape | Circular |
| Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug Housing |
| Fastening Type | Push-Twist |
| Shell Material | Zinc Alloy |
| Insert Material | Synthetic Resin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | JN2DS10S |
| Number of Positions | 10 |
| Shell Size - Insert | S |
| Operating Temperature | -20°C ~ 100°C |
