Step1: Product

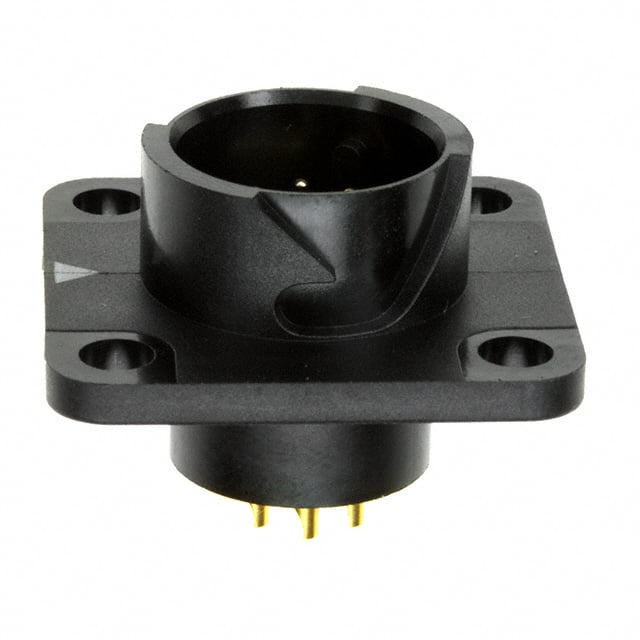

JAE Electronics JN1AS10ML2-R
Image shown is a representation only
Manufacturer
Manufacturer No
JN1AS10ML2-R
Packaging
Tray
Description
CONN RCPT MALE 10POS SOLDER CUP
Detailed Description
10 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
Mfr
JAE Electronics
Color
Black
Series
JN1
Packaging
Tray
Orientation
N (Normal)
Termination
Solder Cup
Cable Opening
0.472" (12.00mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Push-Twist
Shell Material
Synthetic Resin
Voltage Rating
200VAC
Insert Material
Synthetic Resin
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
JN1AS10M
Number of Positions
10
Shell Size - Insert
S
Current Rating (Amps)
3A
Operating Temperature
-20°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
3.90µin (0.099µm)
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Color | Black |
| Series | JN1 |
| Packaging | Tray |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Cable Opening | 0.472" (12.00mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Push-Twist |
| Shell Material | Synthetic Resin |
| Voltage Rating | 200VAC |
| Insert Material | Synthetic Resin |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | JN1AS10M |
| Number of Positions | 10 |
| Shell Size - Insert | S |
| Current Rating (Amps) | 3A |
| Operating Temperature | -20°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
