Step1: Product

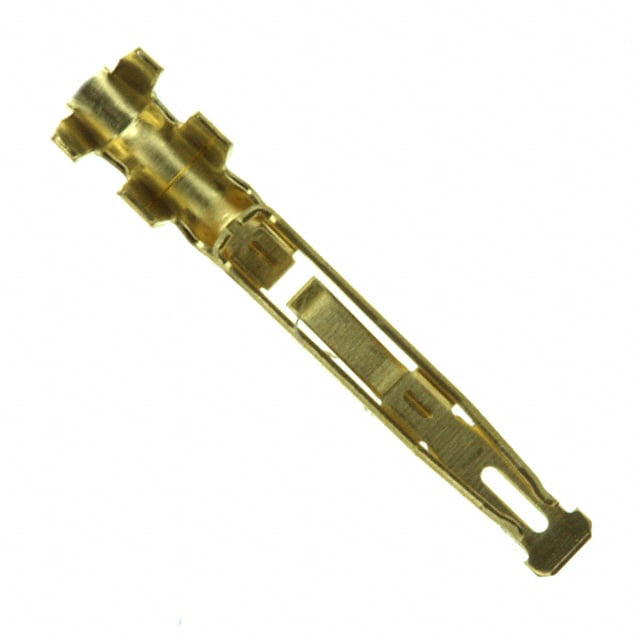

JAE Electronics JN1-22-22S-10000
Image shown is a representation only
Manufacturer
Manufacturer No
JN1-22-22S-10000
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONTACT SOCKET 21-25AWG CRIMP
Detailed Description
Socket Contact 21-25 AWG Size 22 Crimp Gold
Datasheet
Type
Signal, Stamped
Series
JN1
Features
Insulation Support
Packaging
Tape & Reel (TR); Cut Tape (CT)
Contact Size
22
Contact Type
Socket
Manufacturer
JAE Electronics
Contact Finish
Gold
Contact Material
Copper Alloy
Termination Finish
Nickel
Base Product Number
JN1-22-2
Contact Termination
Crimp
Contact Finish Thickness
3.94µin (0.10µm)
Wire Gauge or Range - AWG
21-25 AWG
| Attribute | Value |
|---|---|
| Type | Signal, Stamped |
| Series | JN1 |
| Features | Insulation Support |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Contact Size | 22 |
| Contact Type | Socket |
| Manufacturer | JAE Electronics |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Termination Finish | Nickel |
| Base Product Number | JN1-22-2 |
| Contact Termination | Crimp |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Wire Gauge or Range - AWG | 21-25 AWG |
