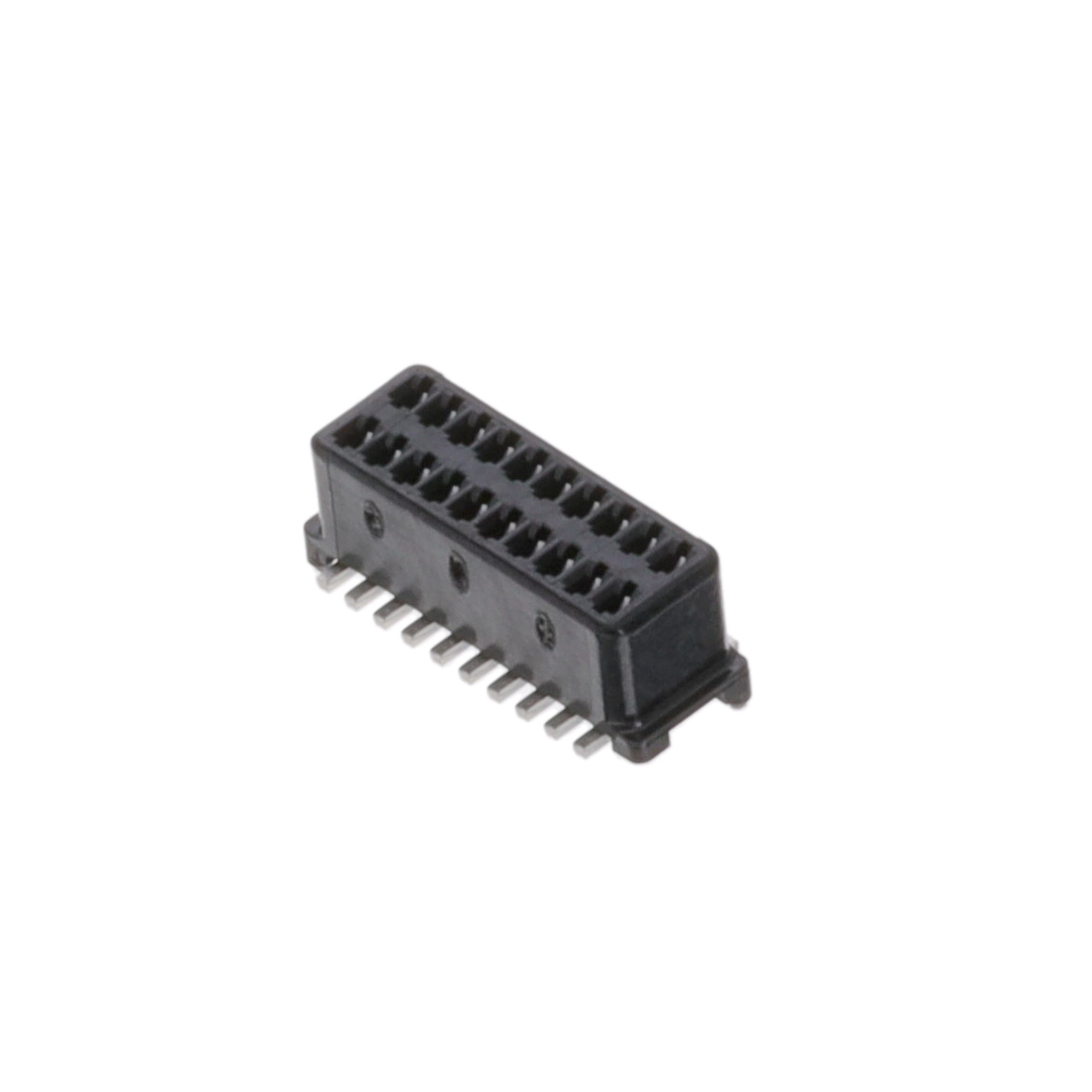

JAE Electronics IL-WX-20SB-VF-B-E1000E
Image shown is a representation only
Manufacturer
Manufacturer No
IL-WX-20SB-VF-B-E1000E
Quantity
20
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 20POS 0.031 TIN SMD
Detailed Description
20 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Tin
DataSheet
Mfr
JAE Electronics
Style
Board to Board
Series
IL-WX
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Forked
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.031" (0.80mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.128" (3.25mm)
Base Product Number
IL-WX-20
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Number of Positions
20
Row Spacing - Mating
0.059" (1.50mm)
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Mated Stacking Heights
4.5mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Board |
| Series | IL-WX |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.031" (0.80mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.128" (3.25mm) |
| Base Product Number | IL-WX-20 |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.059" (1.50mm) |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Mated Stacking Heights | 4.5mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
