Step1: Product

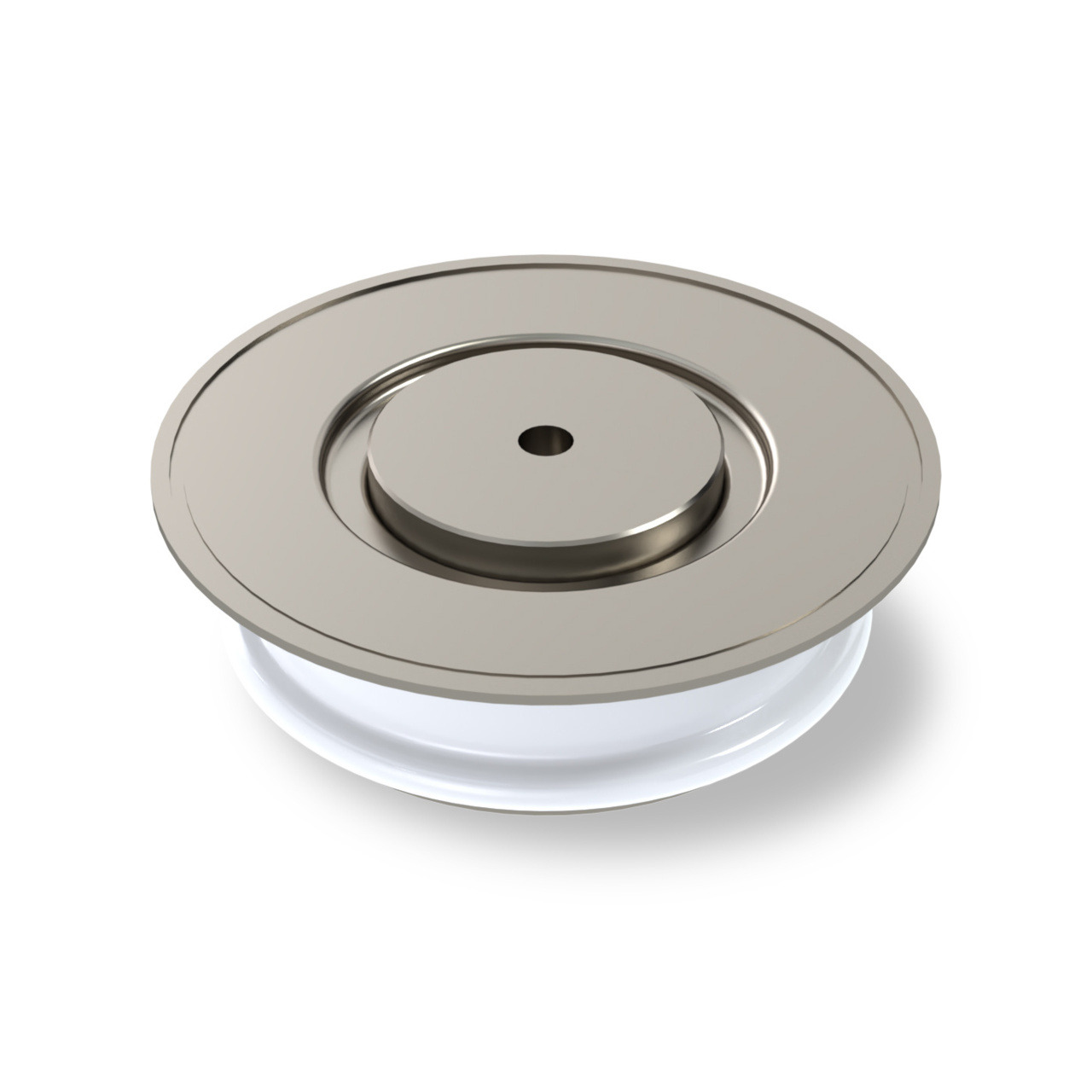

IXYS W1263YC250
Image shown is a representation only
Manufacturer
Manufacturer No
W1263YC250
Package
DO-200AB, A-PUK
Packaging
Box
Description
DIODE STANDARD 2500V 1263A W2
Detailed Description
Diode 2500 V 1263A Clamp On W2
DataSheet
Mfr
IXYS
Speed
Standard Recovery >500ns, > 200mA (Io)
Packaging
Box
Technology
Standard
Part Status
Active
Mounting Type
Clamp On
Package / Case
DO-200AB, A-PUK
Base Product Number
W1263
Supplier Device Package
W2
Reverse Recovery Time (trr)
17 µs
Current - Reverse Leakage @ Vr
30 mA @ 2500 V
Voltage - DC Reverse (Vr) (Max)
2500 V
Current - Average Rectified (Io)
1263A
Operating Temperature - Junction
-40°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
2.12 V @ 3770 A
| Attribute | Value |
|---|---|
| Mfr | IXYS |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Packaging | Box |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Clamp On |
| Package / Case | DO-200AB, A-PUK |
| Base Product Number | W1263 |
| Supplier Device Package | W2 |
| Reverse Recovery Time (trr) | 17 µs |
| Current - Reverse Leakage @ Vr | 30 mA @ 2500 V |
| Voltage - DC Reverse (Vr) (Max) | 2500 V |
| Current - Average Rectified (Io) | 1263A |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 2.12 V @ 3770 A |
