Step1: Product
IXYS QJ8030RH4TP

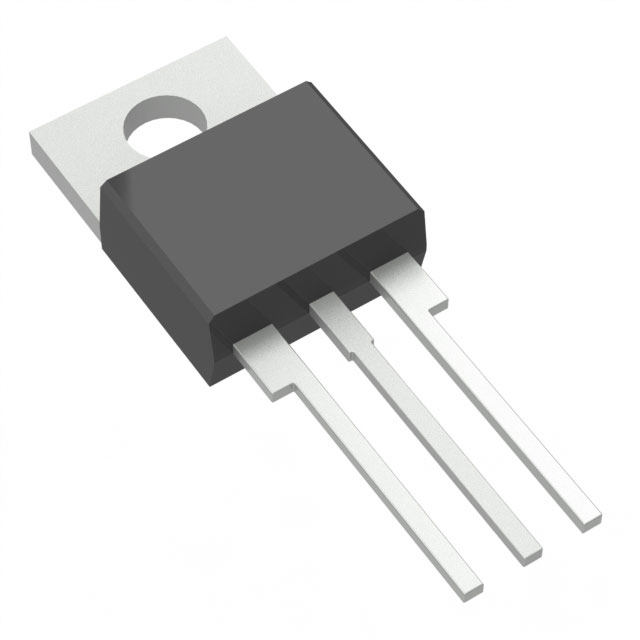

Image shown is a representation only
Manufacturer
Manufacturer No
QJ8030RH4TP
Package
TO-220-3
Packaging
Tube
Description
TRIAC ALTERNISTOR 800V 30A TO220
Detailed Description
TRIAC Alternistor - Snubberless 800 V 30 A Through Hole TO-220
DataSheet
Series
QJxx30xH4
Packaging
Tube
Triac Type
Alternistor - Snubberless
Part Status
Active
Manufacturer
IXYS
Configuration
Single
Mounting Type
Through Hole
Package / Case
TO-220-3
Base Product Number
QJ8030
Voltage - Off State
800 V
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
TO-220
Current - Hold (Ih) (Max)
60 mA
Current - Gate Trigger (Igt) (Max)
35 mA
Voltage - Gate Trigger (Vgt) (Max)
1 V
Current - On State (It (RMS)) (Max)
30 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
290A, 350A
| Attribute | Value |
|---|---|
| Series | QJxx30xH4 |
| Packaging | Tube |
| Triac Type | Alternistor - Snubberless |
| Part Status | Active |
| Manufacturer | IXYS |
| Configuration | Single |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Base Product Number | QJ8030 |
| Voltage - Off State | 800 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | TO-220 |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Current - On State (It (RMS)) (Max) | 30 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 290A, 350A |
