Step1: Product
IXYS IXYT25N250CHV

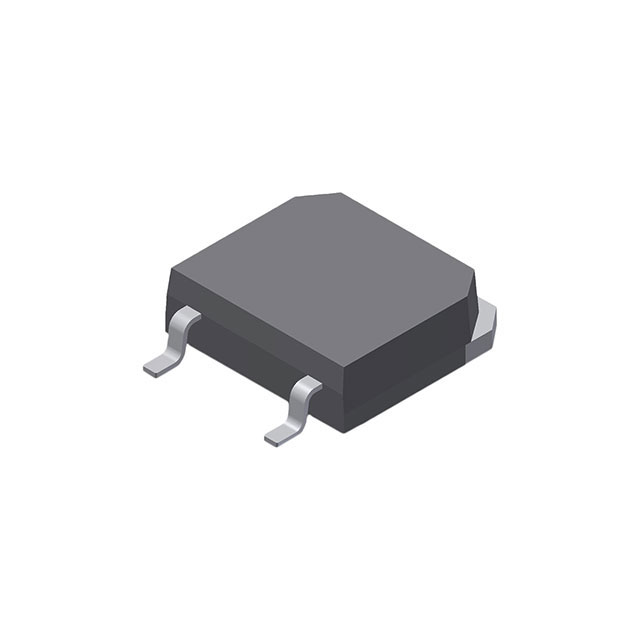

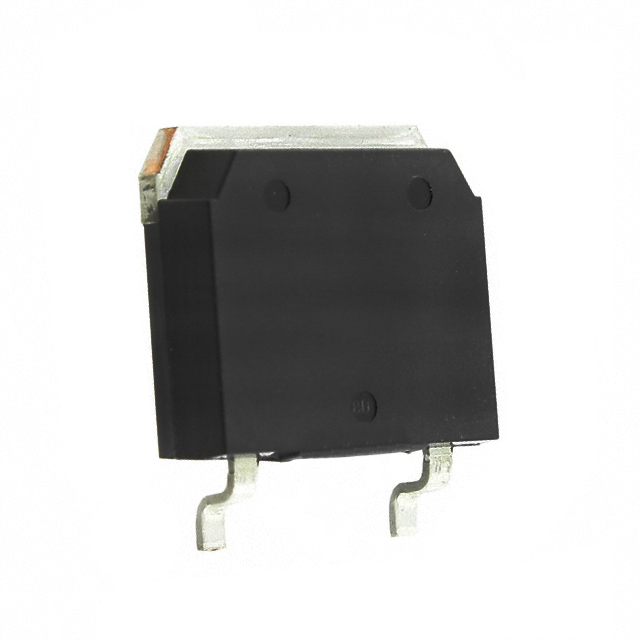

Image shown is a representation only
Manufacturer
Manufacturer No
IXYT25N250CHV
Quantity
95
Availability
In Stock
Package
TO-268-3, D3PAK (2 Leads + Tab), TO-268AA
Packaging
Tube
Description
IGBT 2500V 95A TO-268
Detailed Description
IGBT 2500 V 95 A 937 W Surface Mount TO-268
DataSheet
Series
XPT™
Packaging
Tube
Input Type
Standard
Gate Charge
147 nC
Part Status
Active
Power - Max
937 W
Manufacturer
IXYS
Mounting Type
Surface Mount
Package / Case
TO-268-3, D3PAK (2 Leads + Tab), TO-268AA
Test Condition
1250V, 25A, 5Ohm, 15V
Switching Energy
8.3mJ (on), 7.3mJ (off)
Base Product Number
IXYT25
Td (on/off) @ 25°C
15ns/230ns
Operating Temperature
-55°C ~ 175°C (TJ)
Supplier Device Package
TO-268
Vce(on) (Max) @ Vge, Ic
4V @ 15V, 25A
Reverse Recovery Time (trr)
34 ns
Current - Collector (Ic) (Max)
95 A
Current - Collector Pulsed (Icm)
235 A
Voltage - Collector Emitter Breakdown (Max)
2500 V
| Attribute | Value |
|---|---|
| Series | XPT™ |
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 147 nC |
| Part Status | Active |
| Power - Max | 937 W |
| Manufacturer | IXYS |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Test Condition | 1250V, 25A, 5Ohm, 15V |
| Switching Energy | 8.3mJ (on), 7.3mJ (off) |
| Base Product Number | IXYT25 |
| Td (on/off) @ 25°C | 15ns/230ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | TO-268 |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 25A |
| Reverse Recovery Time (trr) | 34 ns |
| Current - Collector (Ic) (Max) | 95 A |
| Current - Collector Pulsed (Icm) | 235 A |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V |
