Step1: Product
IXYS DPG30I600PM

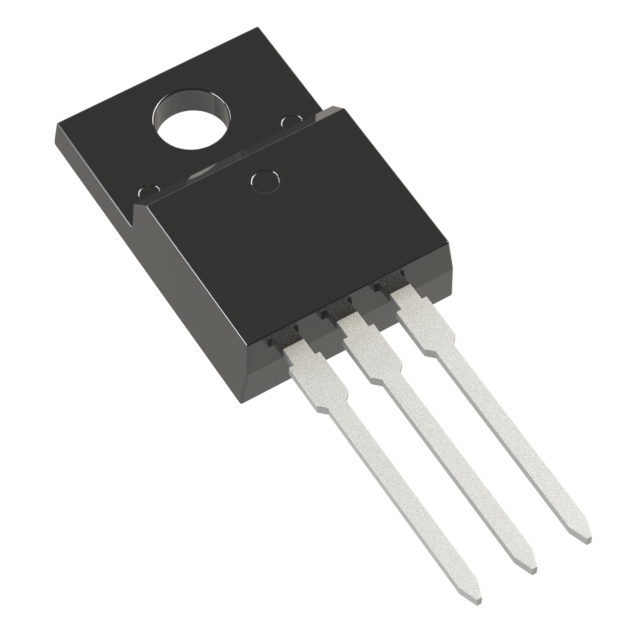

Image shown is a representation only
Manufacturer
Manufacturer No
DPG30I600PM
Package
TO-220-2 Full Pack, Isolated Tab
Packaging
Tube
Description
DIODE STD 600V 15A TO220ACFP
Detailed Description
Diode 600 V 15A Through Hole TO-220ACFP
DataSheet
Mfr
IXYS
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Tube
Technology
Standard
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-220-2 Full Pack, Isolated Tab
Base Product Number
DPG30I600
Capacitance @ Vr, F
26pF @ 400V, 1MHz
Supplier Device Package
TO-220ACFP
Reverse Recovery Time (trr)
25 ns
Current - Reverse Leakage @ Vr
250 µA @ 600 V
Voltage - DC Reverse (Vr) (Max)
600 V
Current - Average Rectified (Io)
15A
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
2.52 V @ 30 A
| Attribute | Value |
|---|---|
| Mfr | IXYS |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Tube |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Base Product Number | DPG30I600 |
| Capacitance @ Vr, F | 26pF @ 400V, 1MHz |
| Supplier Device Package | TO-220ACFP |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 15A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 2.52 V @ 30 A |
