Step1: Product

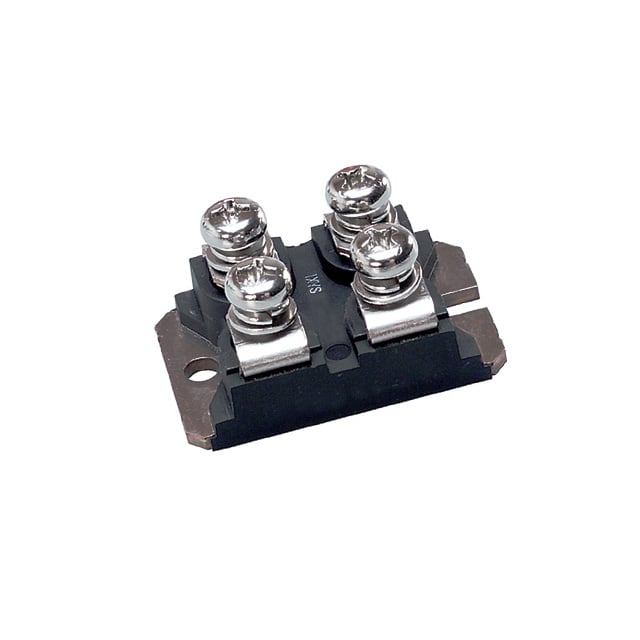

IXYS CMA80PD1600NA
Image shown is a representation only
Manufacturer
Manufacturer No
CMA80PD1600NA
Package
SOT-227-4, miniBLOC
Packaging
Tube
Description
SCR MODULE 1.6KV 126A SOT-227-4
Detailed Description
SCR Module 1.6 kV 126 A Series Connection - SCR/Diode Chassis Mount SOT-227-4, miniBLOC
Datasheet
Packaging
Tube
Structure
Series Connection - SCR/Diode
Manufacturer
IXYS
Mounting Type
Chassis Mount
Package / Case
SOT-227-4, miniBLOC
Base Product Number
CMA80
Voltage - Off State
1.6 kV
Operating Temperature
-40°C ~ 150°C (TJ)
Number of SCRs, Diodes
1 SCR, 1 Diode
Current - Hold (Ih) (Max)
200 mA
Current - Gate Trigger (Igt) (Max)
100 mA
Current - On State (It (AV)) (Max)
80 A
Voltage - Gate Trigger (Vgt) (Max)
1.5 V
Current - On State (It (RMS)) (Max)
126 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
1070A, 1160A
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Structure | Series Connection - SCR/Diode |
| Manufacturer | IXYS |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | CMA80 |
| Voltage - Off State | 1.6 kV |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - On State (It (AV)) (Max) | 80 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 126 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1070A, 1160A |
