Step1: Product

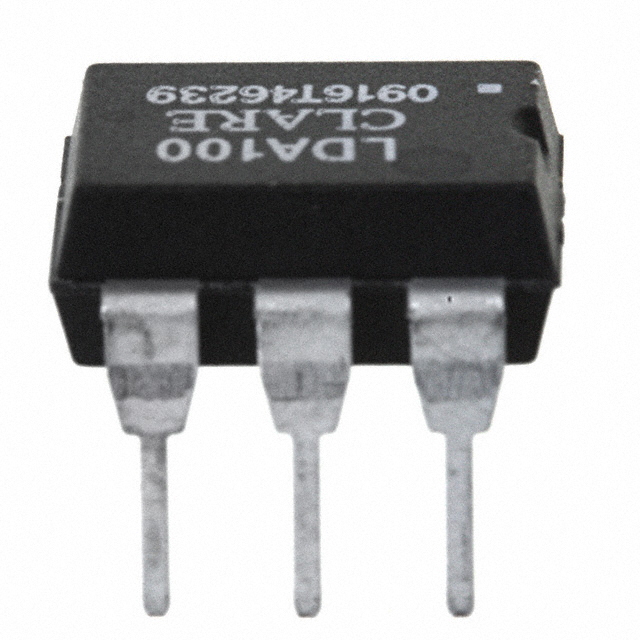

IXYS Integrated Circuits Division LDA100
Image shown is a representation only
Manufacturer
Manufacturer No
LDA100
Quantity
250
Availability
In Stock
Package
6-DIP (0.300", 7.62mm)
Packaging
Tube
Description
OPTOISO 3.75KV TRANS W/BASE 6DIP
Detailed Description
Optoisolator Transistor with Base Output 3750Vrms 1 Channel 6-DIP
DataSheet
Packaging
Tube
Input Type
AC, DC
Output Type
Transistor with Base
Part Status
Active
Manufacturer
IXYS Integrated Circuits Division
Mounting Type
Through Hole
Package / Case
6-DIP (0.300", 7.62mm)
Number of Channels
1
Voltage - Isolation
3750Vrms
Vce Saturation (Max)
500mV
Operating Temperature
-40°C ~ 85°C
Voltage - Output (Max)
30V
Supplier Device Package
6-DIP
Current Transfer Ratio (Min)
33% @ 1mA
Voltage - Forward (Vf) (Typ)
1.2V
Turn On / Turn Off Time (Typ)
7µs, 20µs
Current - DC Forward (If) (Max)
1 mA
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Input Type | AC, DC |
| Output Type | Transistor with Base |
| Part Status | Active |
| Manufacturer | IXYS Integrated Circuits Division |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Vce Saturation (Max) | 500mV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Output (Max) | 30V |
| Supplier Device Package | 6-DIP |
| Current Transfer Ratio (Min) | 33% @ 1mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Turn On / Turn Off Time (Typ) | 7µs, 20µs |
| Current - DC Forward (If) (Max) | 1 mA |
