Step1: Product
Isocom Components 2004 LTD ISP521-4BL

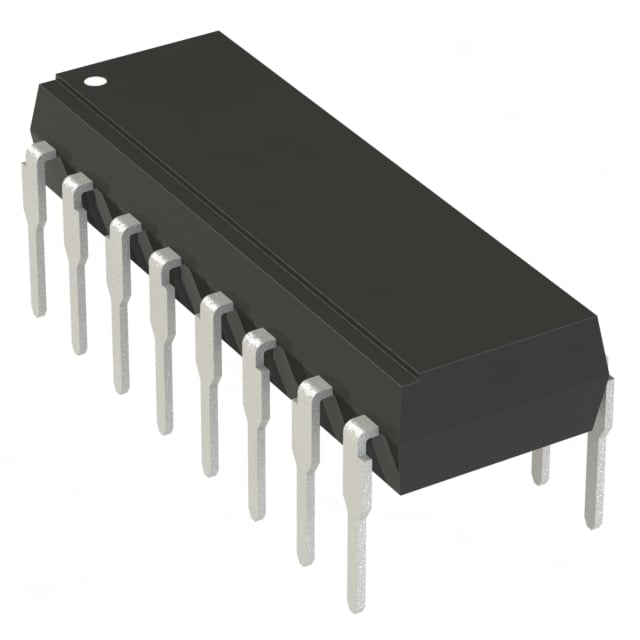

Image shown is a representation only
Manufacturer
Manufacturer No
ISP521-4BL
Package
16-DIP (0.300", 7.62mm)
Packaging
Tube
Description
OPTOISO 5.3KV 4CH TRANS 16-DIP
Detailed Description
Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
DataSheet
Series
ISP521-4
Packaging
Tube
Input Type
DC
Output Type
Transistor
Part Status
Active
Manufacturer
Isocom Components 2004 LTD
Mounting Type
Through Hole
Package / Case
16-DIP (0.300", 7.62mm)
Number of Channels
4
Voltage - Isolation
5300Vrms
Vce Saturation (Max)
400mV
Operating Temperature
-30°C ~ 100°C
Rise / Fall Time (Typ)
4µs, 3µs
Voltage - Output (Max)
55V
Supplier Device Package
16-DIP
Current - Output / Channel
50mA
Current Transfer Ratio (Max)
600% @ 1mA
Current Transfer Ratio (Min)
200% @ 1mA
Voltage - Forward (Vf) (Typ)
1.15V
Current - DC Forward (If) (Max)
50 mA
| Attribute | Value |
|---|---|
| Series | ISP521-4 |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Transistor |
| Part Status | Active |
| Manufacturer | Isocom Components 2004 LTD |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Number of Channels | 4 |
| Voltage - Isolation | 5300Vrms |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -30°C ~ 100°C |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Voltage - Output (Max) | 55V |
| Supplier Device Package | 16-DIP |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 600% @ 1mA |
| Current Transfer Ratio (Min) | 200% @ 1mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
