Step1: Product

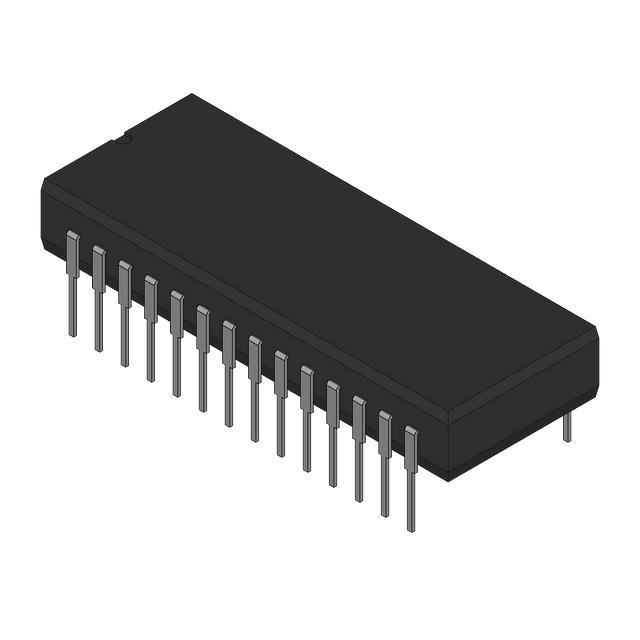

Intersil ISL6551AB
Image shown is a representation only
Manufacturer
Manufacturer No
ISL6551AB
Package
28-SOIC (0.295", 7.50mm Width)
Packaging
Bulk
Description
DUAL SWITCHING CONTROLLER
Detailed Description
Full-Bridge, Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 28-SOIC
DataSheet
Function
Step-Up/Step-Down
Topology
Full-Bridge, Push-Pull
Packaging
Bulk
Clock Sync
Yes
Output Type
Transistor Driver
Part Status
Active
Manufacturer
Intersil
Mounting Type
Surface Mount
Output Phases
1
Package / Case
28-SOIC (0.295", 7.50mm Width)
Control Features
Current Limit, Dead Time Control, Enable, Ramp, Soft Start, Sync
Duty Cycle (Max)
50%
Number of Outputs
2
Base Product Number
ISL6551
Output Configuration
Positive
Frequency - Switching
Up to 1MHz
Operating Temperature
-40°C ~ 105°C (TA)
Synchronous Rectifier
Yes
Supplier Device Package
28-SOIC
Voltage - Supply (Vcc/Vdd)
10.8V ~ 13.2V
| Attribute | Value |
|---|---|
| Function | Step-Up/Step-Down |
| Topology | Full-Bridge, Push-Pull |
| Packaging | Bulk |
| Clock Sync | Yes |
| Output Type | Transistor Driver |
| Part Status | Active |
| Manufacturer | Intersil |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Control Features | Current Limit, Dead Time Control, Enable, Ramp, Soft Start, Sync |
| Duty Cycle (Max) | 50% |
| Number of Outputs | 2 |
| Base Product Number | ISL6551 |
| Output Configuration | Positive |
| Frequency - Switching | Up to 1MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 28-SOIC |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 13.2V |
