International Rectifier IRG7PH35UD1-EP

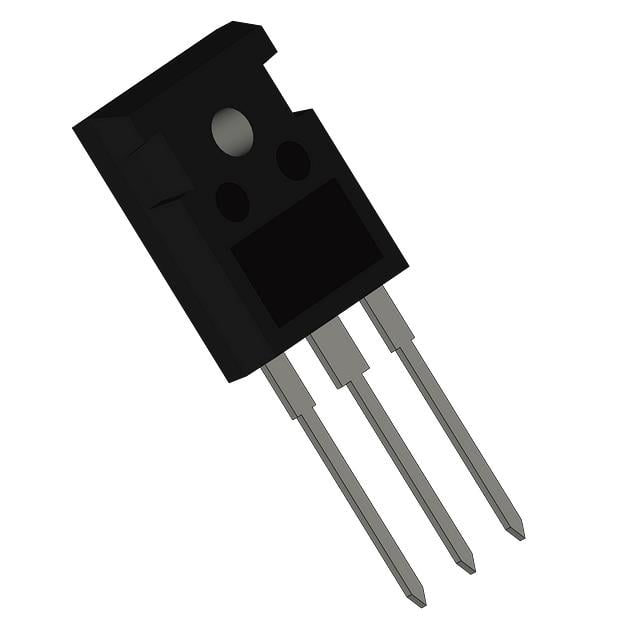

Image shown is a representation only
Manufacturer
Manufacturer No
IRG7PH35UD1-EP
Package
TO-247-3
Packaging
Bulk
Description
IGBT TRENCH 1200V 50A TO-247AD
Detailed Description
IGBT Trench 1200 V 50 A 179 W Through Hole TO-247AD
DataSheet
IGBT Type
Trench
Packaging
Bulk
Input Type
Standard
Gate Charge
130 nC
Part Status
Active
Power - Max
179 W
Manufacturer
International Rectifier
Mounting Type
Through Hole
Package / Case
TO-247-3
Test Condition
600V, 20A, 10Ohm, 15V
Switching Energy
620µJ (off)
Td (on/off) @ 25°C
-/160ns
Operating Temperature
-55°C ~ 150°C (TJ)
Supplier Device Package
TO-247AD
Vce(on) (Max) @ Vge, Ic
2.2V @ 15V, 20A
Current - Collector (Ic) (Max)
50 A
Current - Collector Pulsed (Icm)
150 A
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| IGBT Type | Trench |
| Packaging | Bulk |
| Input Type | Standard |
| Gate Charge | 130 nC |
| Part Status | Active |
| Power - Max | 179 W |
| Manufacturer | International Rectifier |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Test Condition | 600V, 20A, 10Ohm, 15V |
| Switching Energy | 620µJ (off) |
| Td (on/off) @ 25°C | -/160ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | TO-247AD |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 20A |
| Current - Collector (Ic) (Max) | 50 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
