Step1: Product
Integrated Power Designs 101185101CHCO

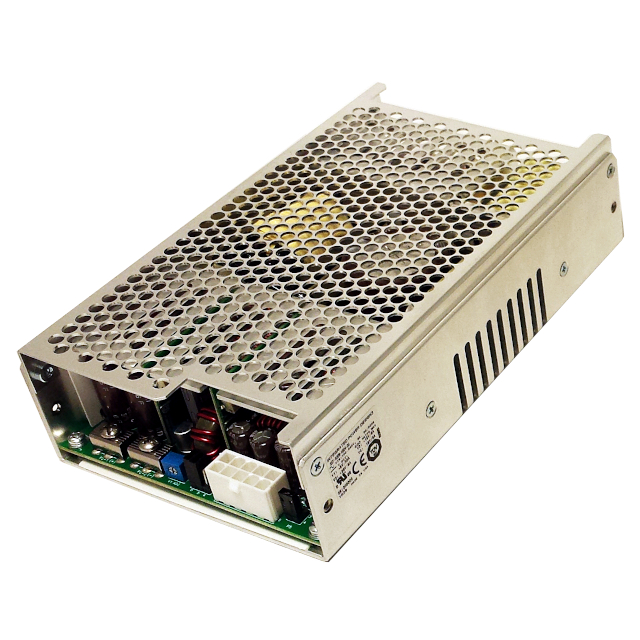

Image shown is a representation only
Manufacturer
Manufacturer No
101185101CHCO
Packaging
Box
Description
AC/DC CNVT 5V 3.3V 12V -12V 400W
Detailed Description
Enclosed AC DC Converters 4 Output 5V 3.3V 12V -12V 100 ~ 240 VAC Input
DataSheet
Mfr
Integrated Power Designs
Type
Enclosed
Series
NXT-400 (400W)
Features
Adjustable Output, Remote Sense, Universal Input
Packaging
Box
Efficiency
87%
Part Status
Active
Applications
ITE (Commercial), Medical
Mounting Type
Chassis Mount
Power (Watts)
400W
Approval Agency
CE, cURus, TUV, UKCA
Standard Number
60601-1; 62368-1
Voltage - Input
100 ~ 240 VAC
Size / Dimension
7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm)
Number of Outputs
4
Current - Output 1
50 A
Current - Output 2
15 A
Current - Output 3
5 A
Current - Output 4
5 A
Voltage - Output 1
5V
Voltage - Output 2
3.3V
Voltage - Output 3
12V
Voltage - Output 4
-12V
Base Product Number
101144801
Operating Temperature
-20°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | Integrated Power Designs |
| Type | Enclosed |
| Series | NXT-400 (400W) |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Packaging | Box |
| Efficiency | 87% |
| Part Status | Active |
| Applications | ITE (Commercial), Medical |
| Mounting Type | Chassis Mount |
| Power (Watts) | 400W |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
| Voltage - Input | 100 ~ 240 VAC |
| Size / Dimension | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) |
| Number of Outputs | 4 |
| Current - Output 1 | 50 A |
| Current - Output 2 | 15 A |
| Current - Output 3 | 5 A |
| Current - Output 4 | 5 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Base Product Number | 101144801 |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
