Step1: Product

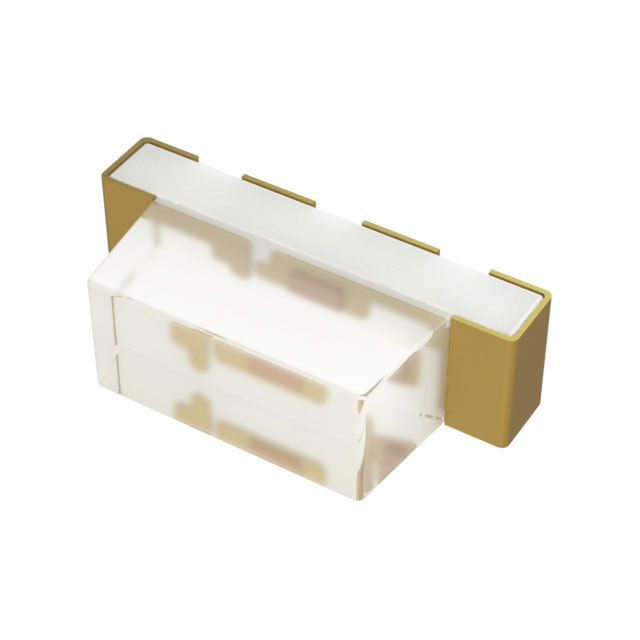

Inolux IN-S63DBS5R5UW
Image shown is a representation only
Manufacturer
Manufacturer No
IN-S63DBS5R5UW
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RED/WHITE CLEAR 0603 SMD R/A
Detailed Description
Red, White 622nm LED Indication - Discrete 1.9V Red, 3V White 0603 (1608 Metric)
DataSheet
Mfr
Inolux
Color
Red, White
Lens Size
1.20mm x 0.50mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.60mm
Configuration
Independent
Mounting Type
Surface Mount, Right Angle
Viewing Angle
120°
Current - Test
5mA Red, 5mA White
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.80mm W
Lens Transparency
Clear
Wavelength - Peak
630nm
Millicandela Rating
35mcd Red, 200mcd White
Wavelength - Dominant
622nm
Supplier Device Package
0603
Voltage - Forward (Vf) (Typ)
1.9V Red, 3V White
| Attribute | Value |
|---|---|
| Mfr | Inolux |
| Color | Red, White |
| Lens Size | 1.20mm x 0.50mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.60mm |
| Configuration | Independent |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 120° |
| Current - Test | 5mA Red, 5mA White |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 630nm |
| Millicandela Rating | 35mcd Red, 200mcd White |
| Wavelength - Dominant | 622nm |
| Supplier Device Package | 0603 |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3V White |
