Step1: Product

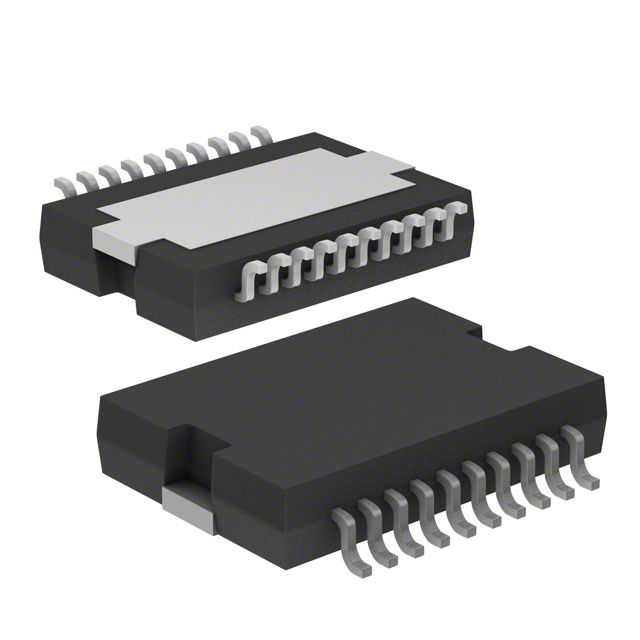

Infineon Technologies TLE72093RAUMA1
Image shown is a representation only
Manufacturer
Manufacturer No
TLE72093RAUMA1
Quantity
12
Availability
In Stock
Package
20-SOIC (0.433", 11.00mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC MOTOR DRIVER 3.5V-5.5V 20DSO
Detailed Description
Motor Driver Power MOSFET SPI PG-DSO-20-65
DataSheet
Grade
Automotive
Function
Driver - Fully Integrated, Control and Power Stage
Interface
SPI
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Power MOSFET
Part Status
Active
Manufacturer
Infineon Technologies
Mounting Type
Surface Mount
Package / Case
20-SOIC (0.433", 11.00mm Width) Exposed Pad
Voltage - Load
5V ~ 28V
Current - Output
5A
Voltage - Supply
3.5V ~ 5.5V
Base Product Number
TLE7209
Motor Type - AC, DC
Brushed DC
Output Configuration
Half Bridge (2)
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
PG-DSO-20-65
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Power MOSFET |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Voltage - Load | 5V ~ 28V |
| Current - Output | 5A |
| Voltage - Supply | 3.5V ~ 5.5V |
| Base Product Number | TLE7209 |
| Motor Type - AC, DC | Brushed DC |
| Output Configuration | Half Bridge (2) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | PG-DSO-20-65 |
