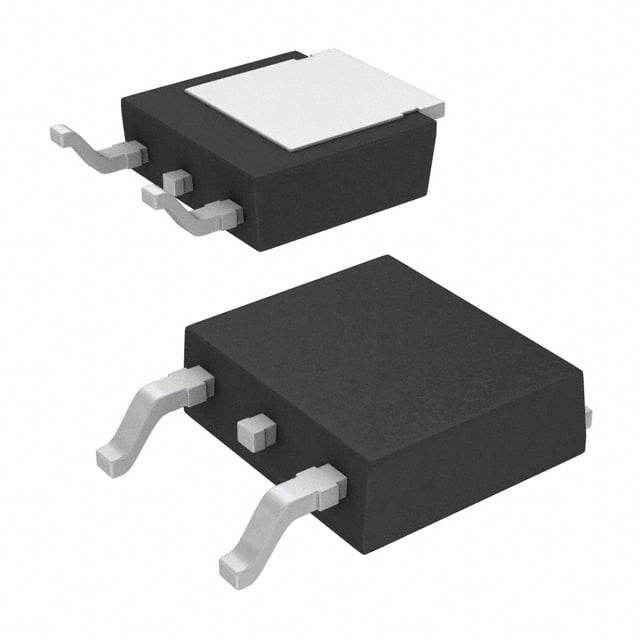

Infineon Technologies SPD11N10
Image shown is a representation only
Manufacturer
Manufacturer No
SPD11N10
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 100V 10.5A TO252-3
Detailed Description
N-Channel 100 V 10.5A (Tc) 50W (Tc) Surface Mount PG-TO252-3-11
DataSheet
Mfr
Infineon Technologies
Series
SIPMOS®
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Vgs(th) (Max) @ Id
4V @ 21µA
Base Product Number
SPD11N
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
170mOhm @ 7.8A, 10V
Power Dissipation (Max)
50W (Tc)
Supplier Device Package
PG-TO252-3-11
Gate Charge (Qg) (Max) @ Vgs
18.3 nC @ 10 V
Drain to Source Voltage (Vdss)
100 V
Input Capacitance (Ciss) (Max) @ Vds
400 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
10.5A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Series | SIPMOS® |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ Id | 4V @ 21µA |
| Base Product Number | SPD11N |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 170mOhm @ 7.8A, 10V |
| Power Dissipation (Max) | 50W (Tc) |
| Supplier Device Package | PG-TO252-3-11 |
| Gate Charge (Qg) (Max) @ Vgs | 18.3 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 100 V |
| Input Capacitance (Ciss) (Max) @ Vds | 400 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Tc) |
