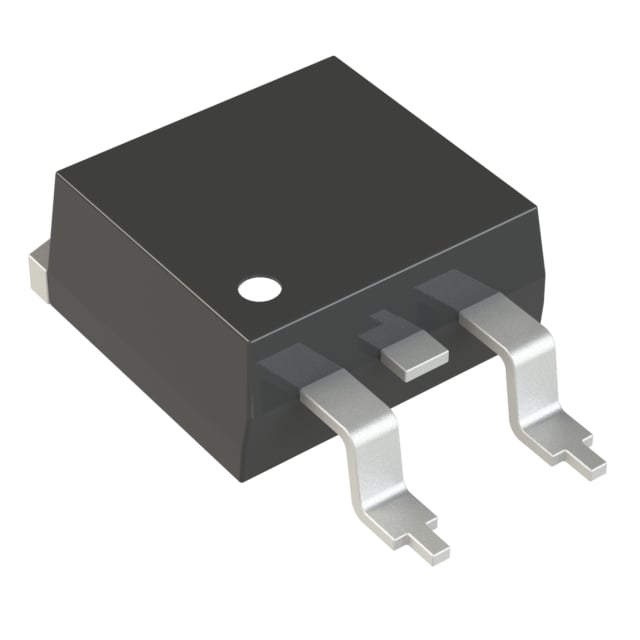

Infineon Technologies SPB80N06S08ATMA1
Image shown is a representation only
Manufacturer
Manufacturer No
SPB80N06S08ATMA1
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 55V 80A TO263-3
Detailed Description
N-Channel 55 V 80A (Tc) 300W (Tc) Surface Mount PG-TO263-3-2
DataSheet
Mfr
Infineon Technologies
Grade
Automotive
Series
SIPMOS®
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Vgs(th) (Max) @ Id
4V @ 240µA
Base Product Number
SPB80N
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
7.7mOhm @ 80A, 10V
Power Dissipation (Max)
300W (Tc)
Supplier Device Package
PG-TO263-3-2
Gate Charge (Qg) (Max) @ Vgs
187 nC @ 10 V
Drain to Source Voltage (Vdss)
55 V
Input Capacitance (Ciss) (Max) @ Vds
3660 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
80A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Grade | Automotive |
| Series | SIPMOS® |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Vgs(th) (Max) @ Id | 4V @ 240µA |
| Base Product Number | SPB80N |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 7.7mOhm @ 80A, 10V |
| Power Dissipation (Max) | 300W (Tc) |
| Supplier Device Package | PG-TO263-3-2 |
| Gate Charge (Qg) (Max) @ Vgs | 187 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 55 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3660 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
