Infineon Technologies ISC019N03L5SATMA1

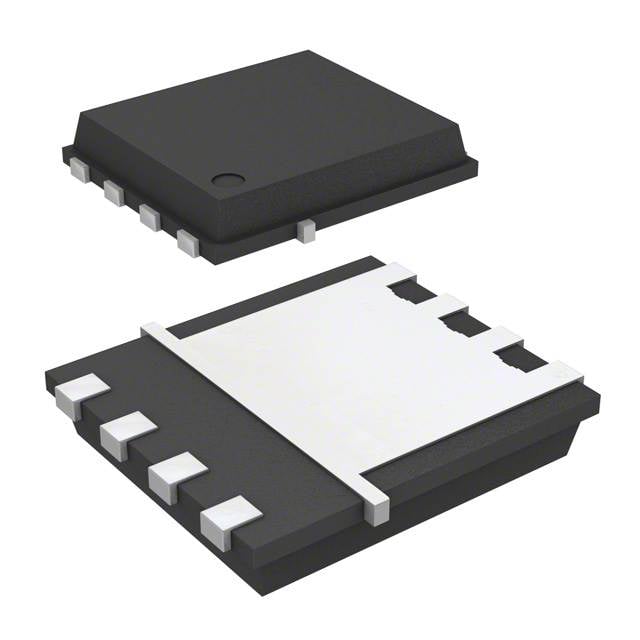

Image shown is a representation only
Manufacturer
Manufacturer No
ISC019N03L5SATMA1
Package
8-PowerTDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET N-CH 30V 28A/100A TDSON
Detailed Description
N-Channel 30 V 28A (Ta), 100A (Tc) 2.5W (Ta), 69W (Tc) Surface Mount PG-TDSON-8-5
DataSheet
Mfr
Infineon Technologies
Series
OptiMOS™
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
8-PowerTDFN
Vgs(th) (Max) @ Id
2V @ 250µA
Base Product Number
ISC019
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
1.9mOhm @ 30A, 10V
Power Dissipation (Max)
2.5W (Ta), 69W (Tc)
Supplier Device Package
PG-TDSON-8-5
Gate Charge (Qg) (Max) @ Vgs
44 nC @ 10 V
Drain to Source Voltage (Vdss)
30 V
Input Capacitance (Ciss) (Max) @ Vds
2800 pF @ 15 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Current - Continuous Drain (Id) @ 25°C
28A (Ta), 100A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Series | OptiMOS™ |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Base Product Number | ISC019 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 30A, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 69W (Tc) |
| Supplier Device Package | PG-TDSON-8-5 |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2800 pF @ 15 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 100A (Tc) |
