Step1: Product
Infineon Technologies IRSM836-084MATR

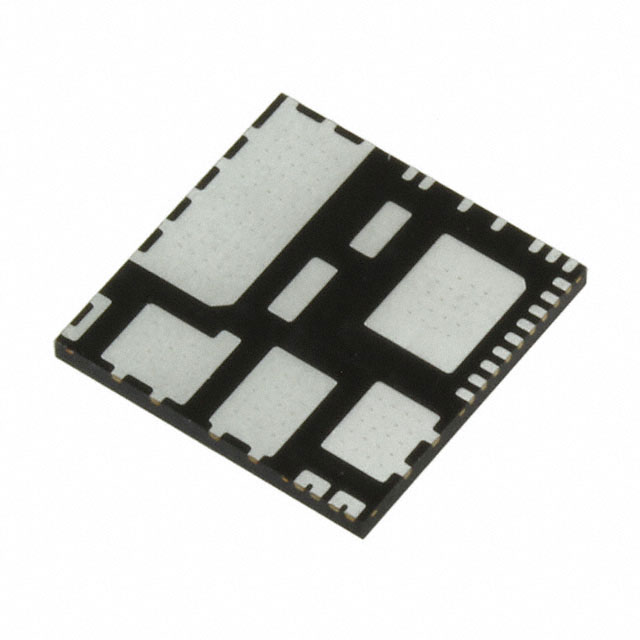

Image shown is a representation only
Manufacturer
Manufacturer No
IRSM836-084MATR
Quantity
38
Availability
In Stock
Package
36-PowerVQFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC HALF BRIDGE DRIVER 7A 36QFN
Detailed Description
Half Bridge (3) Driver AC Motors UMOS 36-PQFN (12x12)
Datasheet
Series
µIPM™
Features
Bootstrap Circuit
Interface
Logic
Load Type
Inductive
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
UMOS
Applications
AC Motors
Manufacturer
Infineon Technologies
Rds On (Typ)
310mOhm
Mounting Type
Surface Mount
Package / Case
36-PowerVQFN
Voltage - Load
200V (Max)
Fault Protection
UVLO
Voltage - Supply
10V ~ 20V
Base Product Number
IRSM836
Output Configuration
Half Bridge (3)
Current - Peak Output
27A
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
36-PQFN (12x12)
Current - Output / Channel
7A
| Attribute | Value |
|---|---|
| Series | µIPM™ |
| Features | Bootstrap Circuit |
| Interface | Logic |
| Load Type | Inductive |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | UMOS |
| Applications | AC Motors |
| Manufacturer | Infineon Technologies |
| Rds On (Typ) | 310mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 36-PowerVQFN |
| Voltage - Load | 200V (Max) |
| Fault Protection | UVLO |
| Voltage - Supply | 10V ~ 20V |
| Base Product Number | IRSM836 |
| Output Configuration | Half Bridge (3) |
| Current - Peak Output | 27A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 36-PQFN (12x12) |
| Current - Output / Channel | 7A |
