Step1: Product

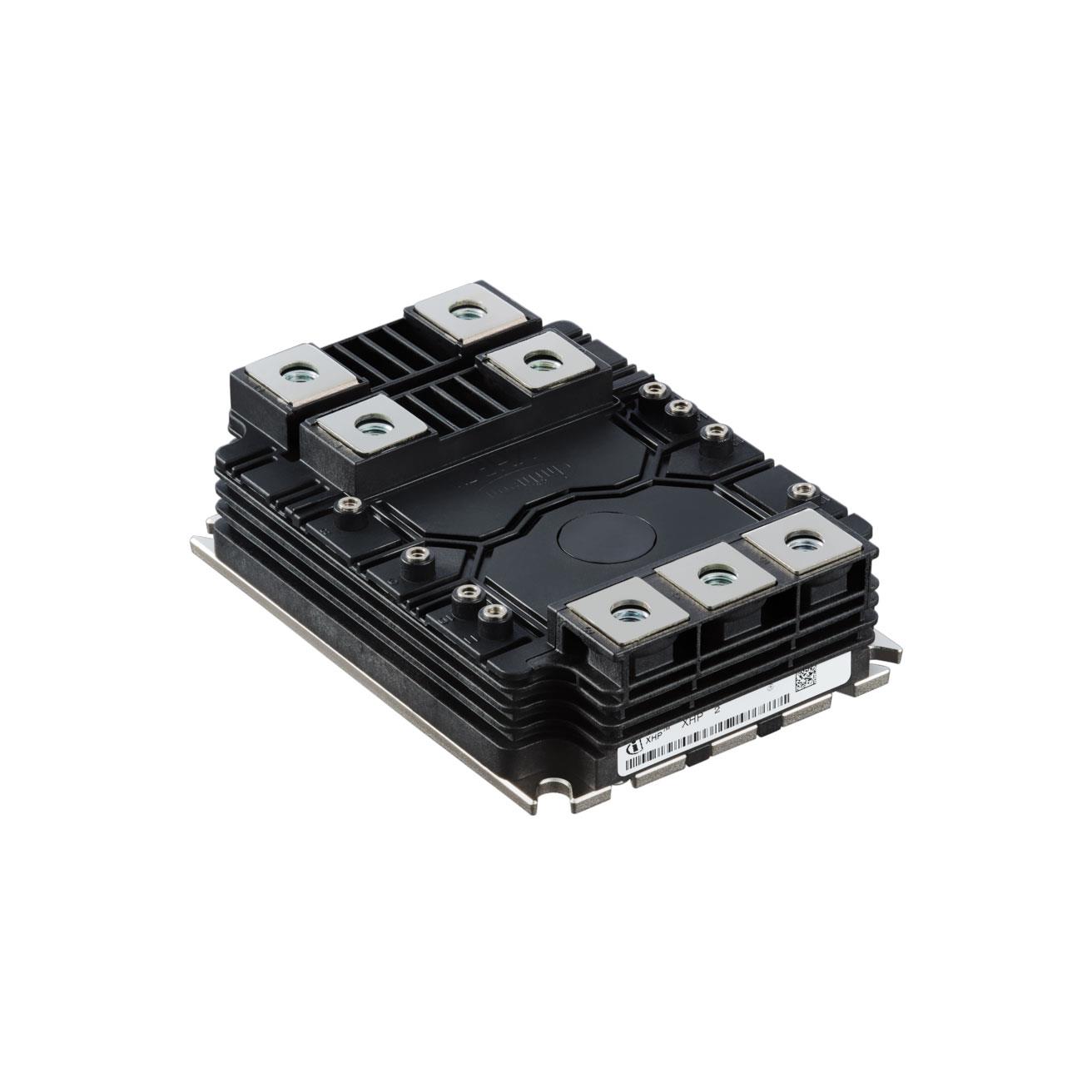

Infineon Technologies FF4000UXTR33T2M1BPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
FF4000UXTR33T2M1BPSA1
Package
Module
Packaging
Tray
Description
MOSFET 2 N-CH 3300V XHP2K17
Detailed Description
Mosfet Array 3300V (3.3kV) 500A (Tc) Chassis Mount AG-XHP2K17
DataSheet
Series
XHP™2
Packaging
Tray
Technology
Silicon Carbide (SiC)
Part Status
Active
Manufacturer
Infineon Technologies
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Chassis Mount
Package / Case
Module
Vgs(th) (Max) @ Id
5.55V @ 450mA
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
4.8mOhm @ 500A, 15V
Supplier Device Package
AG-XHP2K17
Gate Charge (Qg) (Max) @ Vgs
2500nC @ 15V
Drain to Source Voltage (Vdss)
3300V (3.3kV)
Input Capacitance (Ciss) (Max) @ Vds
101000pF @ 1800V
Current - Continuous Drain (Id) @ 25°C
500A (Tc)
| Attribute | Value |
|---|---|
| Series | XHP™2 |
| Packaging | Tray |
| Technology | Silicon Carbide (SiC) |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 5.55V @ 450mA |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 500A, 15V |
| Supplier Device Package | AG-XHP2K17 |
| Gate Charge (Qg) (Max) @ Vgs | 2500nC @ 15V |
| Drain to Source Voltage (Vdss) | 3300V (3.3kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 101000pF @ 1800V |
| Current - Continuous Drain (Id) @ 25°C | 500A (Tc) |
