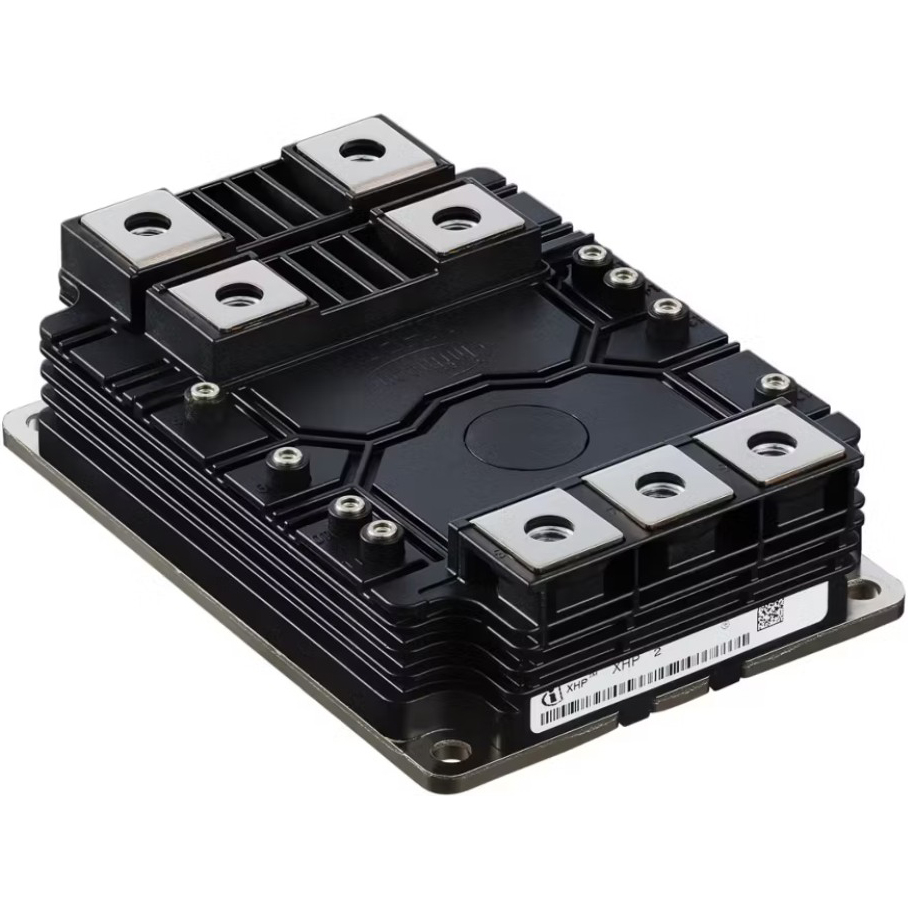

Infineon Technologies FF1300UXTR23T2M1BPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
FF1300UXTR23T2M1BPSA1
Package
Module
Packaging
Tray
Description
FET 2N-CH 2.3KV 1.07KA AGXHP2K23
Detailed Description
Mosfet Array 2300V (2.3kV) 1.07kA (Tc) Chassis Mount AG-XHP2K23
DataSheet
Series
CoolSiC™, XHP™2
Packaging
Tray
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Manufacturer
Infineon Technologies
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Chassis Mount
Package / Case
Module
Vgs(th) (Max) @ Id
5.15V @ 675mA
Base Product Number
FF1300UXTR
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
1.59mOhm @ 1500A, 15V
Supplier Device Package
AG-XHP2K23
Gate Charge (Qg) (Max) @ Vgs
3980nC @ 15V
Drain to Source Voltage (Vdss)
2300V (2.3kV)
Input Capacitance (Ciss) (Max) @ Vds
143000pF @ 1500V
Current - Continuous Drain (Id) @ 25°C
1.07kA (Tc)
| Attribute | Value |
|---|---|
| Series | CoolSiC™, XHP™2 |
| Packaging | Tray |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 5.15V @ 675mA |
| Base Product Number | FF1300UXTR |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.59mOhm @ 1500A, 15V |
| Supplier Device Package | AG-XHP2K23 |
| Gate Charge (Qg) (Max) @ Vgs | 3980nC @ 15V |
| Drain to Source Voltage (Vdss) | 2300V (2.3kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 143000pF @ 1500V |
| Current - Continuous Drain (Id) @ 25°C | 1.07kA (Tc) |
