Step1: Product

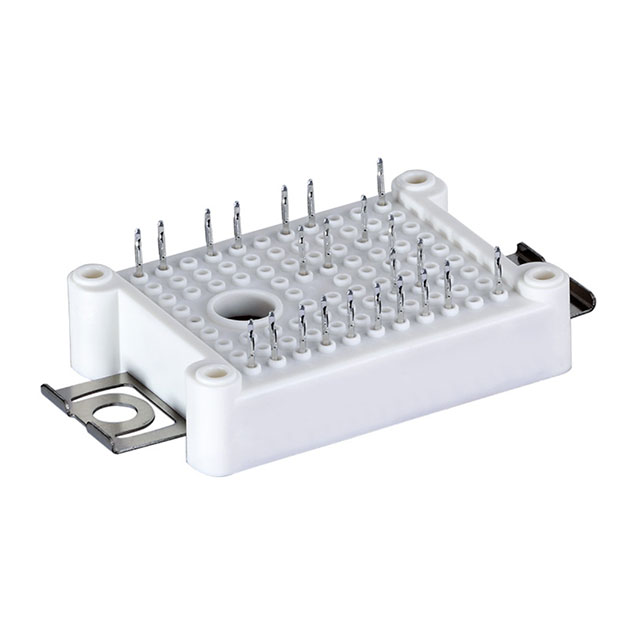

Infineon Technologies DF16MR12W1M1HFB67BPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
DF16MR12W1M1HFB67BPSA1
Packaging
Tray
Description
MOSFET 2N-CH 1200V 25A
Detailed Description
Mosfet Array 1200V (1.2kV) 25A Chassis Mount
DataSheet
Series
EasyPACK™, CoolSiC™
Packaging
Tray
Part Status
Active
Manufacturer
Infineon Technologies
Configuration
2 N-Channel (Dual)
Mounting Type
Chassis Mount
Vgs(th) (Max) @ Id
5.15V @ 10mA
Base Product Number
DF16MR12
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
32.3mOhm @ 25A, 18V
Gate Charge (Qg) (Max) @ Vgs
74nC @ 18V
Drain to Source Voltage (Vdss)
1200V (1.2kV)
Input Capacitance (Ciss) (Max) @ Vds
2200pF @ 800V
Current - Continuous Drain (Id) @ 25°C
25A
| Attribute | Value |
|---|---|
| Series | EasyPACK™, CoolSiC™ |
| Packaging | Tray |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Chassis Mount |
| Vgs(th) (Max) @ Id | 5.15V @ 10mA |
| Base Product Number | DF16MR12 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 32.3mOhm @ 25A, 18V |
| Gate Charge (Qg) (Max) @ Vgs | 74nC @ 18V |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 2200pF @ 800V |
| Current - Continuous Drain (Id) @ 25°C | 25A |
